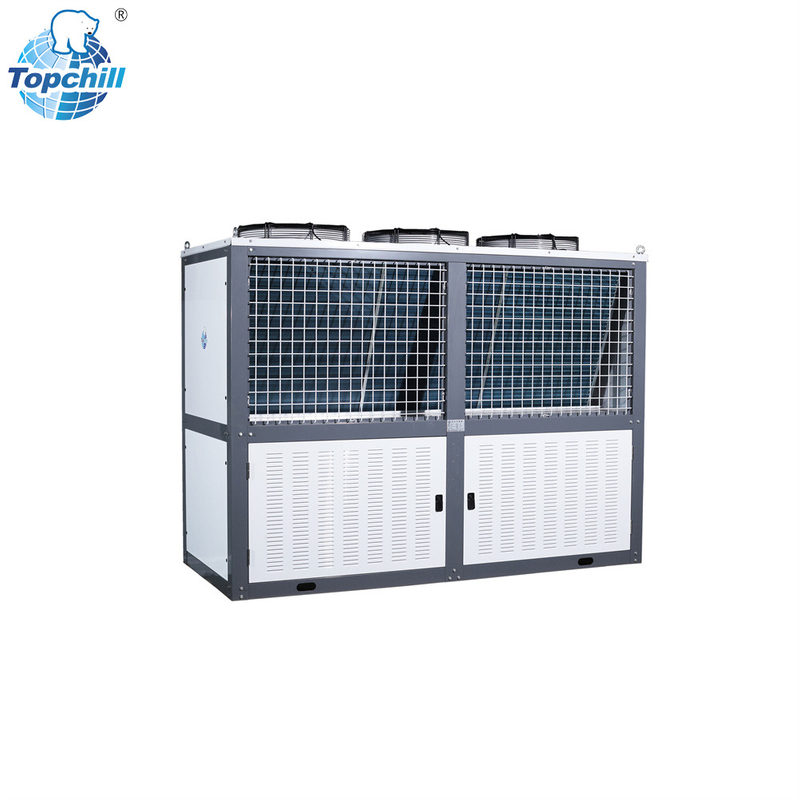

Product Line: Part of Topchill’s 5 air-cooled condenser series (FNH, FNV, FNU, FNVB, TP); available in top-discharge and side-discharge designs.

Heat Dissipation: Δt=15K (standard condition), heat exhaust 24840–165600W, heat removal area 72–480㎡.

Fan System: 1–3 fans (diameter 550–750mm), air flow 8720–97125 m³/h, power 600–3300W, voltage 380V.

Pipe Details: Inlet pipe diameter 16–28mm, outlet pipe diameter 22–54mm.

Dimensions & Mounting: Length 950–3400mm, width 900–1175mm, height 880–1980mm; mounting holes spaced 550–2700mm (E dimension) for stable fixing.

Large-Scale Cold Storage Warehouses

Paired with industrial refrigeration units for meat/seafood cold stores (1000–10,000㎡). High heat dissipation capacity (up to 165600W) handles heavy cooling loads in high-temperature/humidity environments.

Food Processing Workshops

Used in dairy, bakery, and meat-cutting workshops (high humidity 85–90%). Anti-clogging fins and waterproof motors withstand frequent washdowns, meeting FDA and EU food safety standards.

Chemical & Pharmaceutical Cooling

Cools low-temperature chemical processes (e.g., polymer production) and pharmaceutical refrigeration systems. 316L stainless steel tubes resist chemical corrosion, ensuring product purity.

High-Humidity Coastal Regions

Ideal for southern China, Southeast Asia, and coastal countries—nano-coated fins prevent salt corrosion, and automatic defrosting handles rapid frost formation from high humidity.

Q: Is the FNVB series compatible with all Freon types?

A: Yes, it works with R22, R410A, R507A, and other common Freon refrigerants.

Q: What certifications does the unit have?

A: CE, UL, ASHRAE, and ISO 50001—compliant with global market standards (EU, US, Southeast Asia).

Q: Can it be used outdoors?

A: Yes, it is IP54-rated for outdoor use, with weatherproof casings and rain shields (optional for heavy rainfall regions).

Q: What is the lead time for customization?

A: Standard models: 2–4 weeks; custom designs (e.g., special pipe sizes): 4–6 weeks.
