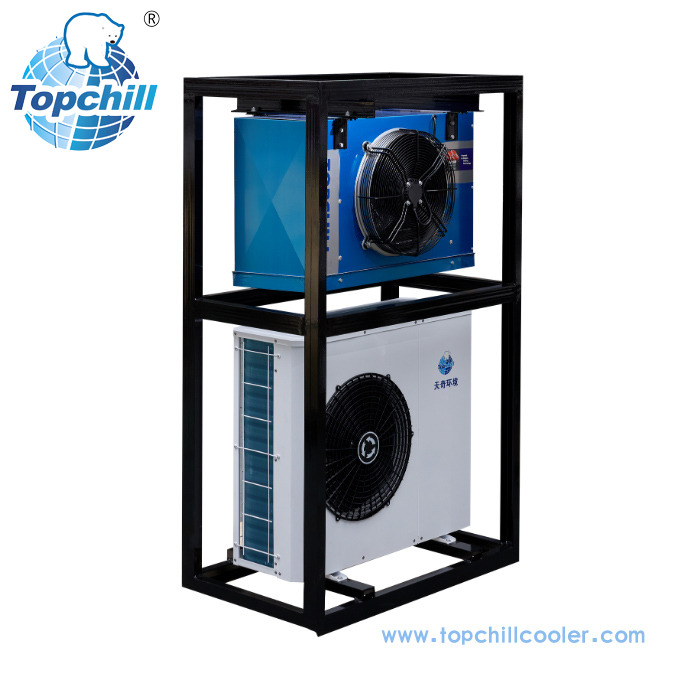

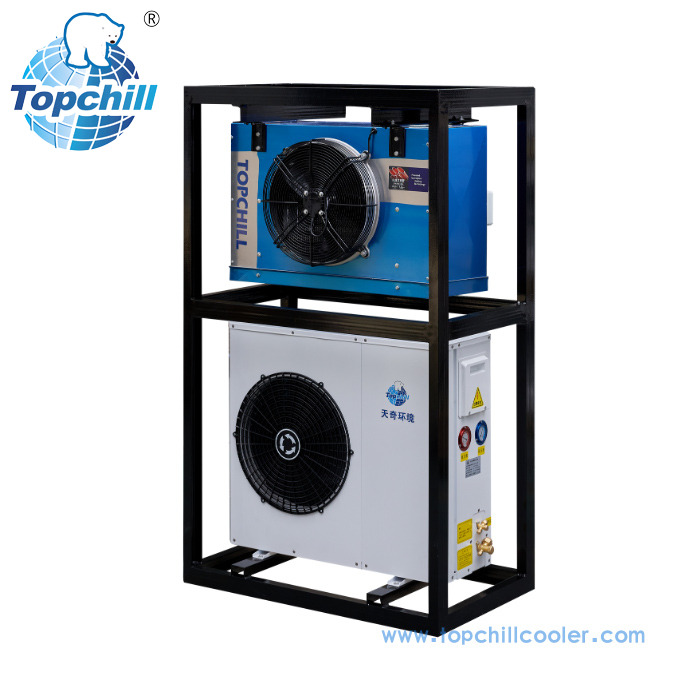

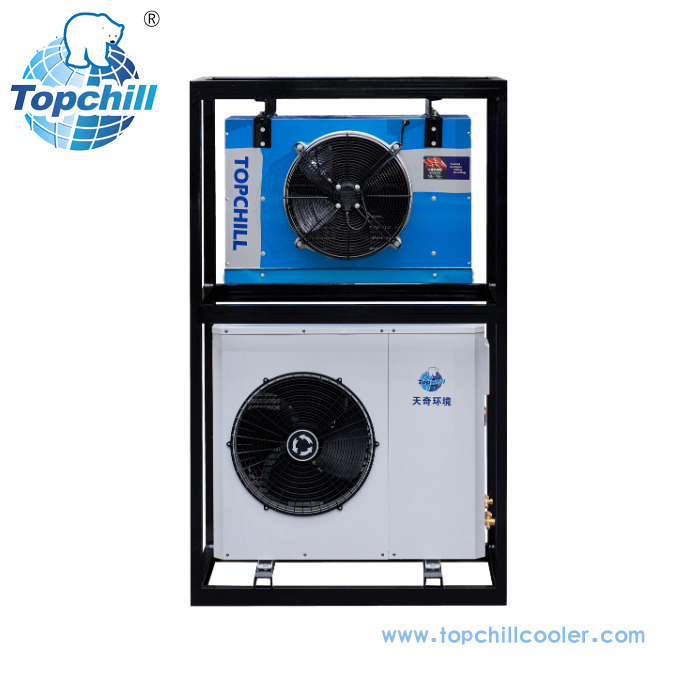

Low-Temperature Box-Type Unit ZSI Efficient

Topchill Refrigeration Box L-type Condensing Units deliver unmatched performance with 35% energy savings, powered by Copeland scroll compressor and IoT-ready connectivity. Designed for harsh environments, these units feature IP66-rated durability and corrosion-resistant stainless steel components, ensuring reliable operation from -30℃ to 50℃.


Availability:



Inquire Add to Basket

CABINET STYLE condensing unit COMPRESSOR DEFROST CONTROL TEMPERATURE CONTROL

Product Advantage

Technical Parameters

Product Uses

FAQ

The Topchill Box-Type Unit ZSI Low Temp is a versatile, low-temperature condensing unit designed for small-to-medium cooling needs. Available in 220V/1Ph and 380V/3Ph versions, it features Copeland ZSI-series scroll compressors, intelligent defrost control, and compact design—ideal for small cold storage, supermarkets, and dairy facilities.

CABINET STYLE

Dual-Voltage Flexibility

Offered in 220V/1Ph/50Hz (2HP-4HP) and 380V/3Ph/50Hz (2HP-3HP) versions, adapting to different power supplies (e.g., small shops, industrial sites).

No need for voltage converters, reducing installation costs and complexity.

Efficient Copeland Scroll Compressors

Equipped with Copeland ZSI-series compressors (ZSI06KQE, ZSI08KQE, ZSI11KQE) optimized for low temperatures (-30℃ to 0℃).

Delivers COP (Coefficient of Performance) up to 2.0, ensuring energy efficiency for long-hour operation.

All-in-One Control for Cold Storage

Full setup includes main control board, library temperature control board, and remote operation panel: Directly usable for cold storage (no extra distributors/controllers).

Operation panel features temperature display/setting, defrost control, and alarm functions—installable separately for easy monitoring.

Reliable Safety Protections

Comprehensive safeguards: Phase sequence/loss protection, overcurrent protection, compressor frequent start protection, and high/low pressure protection.

Fault alarm and inquiry: Buzzer alerts for issues (e.g., high discharge temperature); query function tracks fault history for quick troubleshooting.

Compact & Quiet Design

Small footprint (830×950×355mm for most models): Fits in narrow spaces (e.g., backrooms of convenience stores).

Low noise (≤65 dB[A]): Suitable for urban areas, hospitals, and residential-adjacent facilities.

The ZSI Low Temp unit covers 2HP-4HP models, with key specs varying by voltage:

220V/1Ph/50Hz Models (2HP-4HP):

Cooling Capacity: 3.7/2.0 kW (2HP) to 6.4/3.4 kW (4HP) (evaporating temp -7℃/-25℃).

Compressor: ZSI06KQE (2HP), ZSI08KQE (3HP), ZSI11KQE (4HP); rated current 9.3-15.6A.

Fan: 1 fan (860 rpm), air flow 2400 m³/h; oil recharge 1.3-2.6L.

380V/3Ph/50Hz Models (2HP-3HP):

Cooling Capacity: 3.6/1.9 kW (2HP) to 4.8/2.6 kW (3HP) (evaporating temp -7℃/-25℃).

Compressor: ZSI06KQE (2HP), ZSI09KQE (3HP); rated current 3.8-4.4A.

Fan: 1 fan (860 rpm), air flow 2400 m³/h; oil recharge 1.3L.

Connection Sizes: Suction diameter 3/4", liquid diameter 3/8"-1/2"; weight 74-81kg.

L-type box parameter table (low temperature ZSI)

R404-220V/1Ph/50Hz

Specification Model

Rated Horsepower

HP

2P

3P

4P

Power Supply

Volt/Ph/Hz

220/1/50

Performance

Evaporating Temp/Cooling Temp

℃

-7/50 -25/45

Cooling Capacity

kw

3.7/2.0

4.4/2.4

6.4/3.4

COP

1.9/1.2

1.8/1.1

2.0/1.2

Compressor

Compressor Model

ZSI06KQE

ZSI08KQE

ZSI11KQE

Compressor Type

Hermetic Scroll Compressor

Rated Current

A

9.3/8.2

11.2/9.9

15.6/14.4

Stalled Rotor Current

A

51.2

63.9

128

Sufficient Oil

L

1.3

2.6

Fan Parameters

Qty.

Qty

1

Speed

rpm

860

Air Flow

m³/h

2400

Current

A

0.68

Volt/Ph/Hz

220/1/50

Connection Model

Suction

in

3/4

Liquid

in

3/8

1/2

Overall Dimension

Length

mm

830

Width

mm

950

Height

mm

355

Weight

kg

74

77

81

Model	kW	Condensing Temp ℃	Evaporating Temp ℃
			-30	-25	-20	-15	-10	-5	0
ZSI06KQE	Q	60				2.23	2.68	3.21	3.82
		55	1.34	1.65	2.03	2.47	2.98	3.58	4.26
		50	1.47	1.82	2.24	2.74	3.31	3.98	4.74
		45	1.63	2.02	2.48	3.02	3.66	4.39	5.22
		40	1.78	2.21	2.71	3.31	4.00	4.79	5.70
		35	1.93	2.38	2.93	3.57	4.31	5.17	6.15
		30	2.03	2.52	3.10	3.79	4.59	5.50	6.55
		25	2.09	2.61	3.22	3.95	4.80	5.77	6.88
	P	60				2.47	2.49	2.49	2.47
		55	2.04	2.08	2.13	2.16	2.18	2.19	2.17
		50	1.83	188	1.92	1.96	1.98	1.99	1.97
		45	1.70	1.75	1.79	1.83	1.86	1.86	1.85
		40	1.60	1.65	1.70	1.73	1.76	1.77	1.75
		35	1.49	1.54	1.59	1.63	1.66	1.67	1.65
		30	1.34	1.39	1.44	1.48	1.50	1.51	1.50
		25	1.10	1.15	1.20	1.24	1.27	1.27	1.26
ZSI08KQE	Q	60				2.65	3.19	3.82	4.54
		55	1.56	1.95	2.41	2.94	3.55	4.26	5.07
		50	1.72	2.16	2.66	3.25	3.93	4.72	5.62
		45	1.90	2.38	2.93	3.58	4.32	5.19	6.17
		40	2.08	2.59	3.19	3.89	4.70	5.64	6.71
		35	2.23	278	3.42	4.18	5.05	6.06	7.22
		30	2.35	2.93	3.62	4.42	5.36	6.44	7.67
		25	2.42	3.02	3.75	4.60	5.60	6.75	8.06
	P	60				2.84	2.86	2.87	2.86
		55	2.51	2.51	2.52	2.55	2.58	2.59	2.59
		50	2.27	2.27	2.30	2.33	2.37	2.39	2.39
		45	2.08	2.09	2.13	2.17	2.20	2.23	2.24
		40	1.93	1.95	1.99	2.03	2.07	2.10	2.10
		35	1.79	1.82	1.85	1.90	1.94	1.96	1.96
		30	1.65	1.67	1.70	1.75	1.78	1.80	1.80
		25	1.46	1.48	1.52	1.55	1.58	1.60	1.59
ZSI11KQE	Q	60				3.77	4.48	5.36	6.43
		55	2.25	2.87	3.50	4.22	5.05	6.05	7.26
		50	2.45	3.13	3.84	4.64	5.58	6.69	8.03
		45	2.63	3.37	4.16	5.04	6.07	7.30	8.76
		40	2.81	3.60	4.46	5.42	6.55	7.88	9.46
		35	3.00	3.84	4.76	5.80	7.02	8.45	10.15
		30	3.20	4.09	5.06	6.18	7.48	9.02	10.83
		25	3.43	4.36	5.39	6.58	7.96	9.59	11.51
	P	60				4.06	4.05	4.03	4.07
		55	3.52	3.60	3.63	3.63	3.62	3.63	3.69
		50	3.04	3.15	3.21	3.23	3.24	3.27	3.34
		45	2.63	2.77	2.84	2.88	2.90	2.94	3.02
		40	2.29	2.44	2.53	2.57	2.60	2.64	2.72
		35	2.01	2.17	2.26	2.31	2.34	2.38	2.45
		30	1.79	1.95	2.04	2.08	2.11	2.13	2.19
		25	1.62	1.78	1.86	1.89	1.90	1.91	1.95

L-type box parameter table (low temperature ZSI)

R404-380V/3Ph/50Hz

Specification Model

Rated Horsepower

HP

2P

3P

Power Supply

Volt/Ph/Hz

380/3/50

Performance

Evaporating Temp/Cooling Temp

℃

-7/50 -25/45

Cooling Capacity

kw

3.6/1.9

4.8/2.6

COP

1.8/1.1

1.9/1.2

Compressor

Compressor Model

ZSI06KQE

ZSI08KQE

Compressor Type

Hermetic Scroll Compressor

Rated Current

A

3.8/3.5

4.4/3.9

Stalled Rotor Current

A

34.8

Sufficient Oil

L

1.3

Fan Parameters

Qty.

Qty

1

Speed

rpm

860

Air Flow

m³/h

2400

Current

A

0.68

Volt/Ph/Hz

220/1/50

Connection Model

Suction

in

3/4

Liquid

in

3/8

Overall Dimension

Length

mm

830

Width

mm

950

Height

mm

355

Weight

kg

74

77

Model	KW	Condensing Temp ℃	Evaporating Temp℃
			-30	-25	-20	-15	-10	-5	0
ZSI06KQE	Q	60				2.06	2.52	3.05	3.65
		55	1.17	1.49	1.88	2.33	2.85	3.45	4.14
		50	1.34	1.69	2.11	2.61	3.19	3.86	4.62
		45	1.50	1.88	2.33	2.87	3.51	4.25	5.10
		40	1.66	2.05	2.54	3.13	3.83	4.64	5.57
		35	1.79	2.21	2.74	3.37	4.13	5.01	6.02
		30	1.91	2.35	2.91	3.59	4.41	5.36	6.46
		25	1.99	2.46	3.05	3.78	4.66	5.68	6.86
	P	60				2.49	2.50	2.50	2.48
		55	2.05	2.10	2.14	2.17	2.19	2.19	2.18
		50	1.82	1.88	1.93	1.96	1.98	1.99	1.98
		45	1.66	1.73	1.79	1.83	1.85	1.86	1.85
		40	1.54	1.62	1.68	1.72	1.75	1.75	1.74
		35	1.42	1.51	1.57	1.61	1.63	1.63	1.62
		30	1.26	1.35	1.41	1.45	1.47	1.47	1.44
		25	1.02	1.10	1.16	1.20	1.21	1.20	1.17
ZSI09KQE	Q	60				2.90	3.49	4.16	4.94
		55	1.60	2.07	2.59	3.17	3.83	4.59	5.47
		50	1.80	2.32	2.89	3.54	4.27	5.12	6.10
		45	2.07	2.62	3.24	3.95	4.76	5.69	6.77
		40	2.34	2.93	3.60	4.37	5.25	6.27	7.44
		35	2.58	3.21	3.93	4.76	5.71	6.81	8.07
		30	2.74	3.41	4.18	5.06	6.09	7.27	8.63
		25	2.79	3.50	4.31	5.25	6.35	7.61	9.06
	P	60				3.14	3.13	3.14	3.19
		55	2.71	2.77	2.79	2.80	2.81	2.83	2.89
		50	2.39	2.46	2.50	2.51	2.53	2.56	2.63
		45	2.12	2.20	2.25	2.27	2.29	2.33	2.40
		40	1.89	1.98	2.03	2.06	2.09	2.13	2.19
		35	1.70	1.80	1.85	1.88	1.90	1.94	2.00
		30	1.54	1.63	1.69	1.71	1.73	1.76	1.82
		25	1.40	1.49	1.53	1.55	1.56	1.58	1.63

Small-Scale Cold Storage

Convenience store cold storage: Stores frozen snacks, ice cream, and beverages at -18℃ to -25℃, with defrost control preventing frost buildup.

Small pharmaceutical storage: Maintains 2-8℃ for vaccines and medications in clinics or rural hospitals.

Supermarkets & Dairy Facilities

Milk tanks and dairy coolers: Keeps milk, yogurt, and cheese at 0-4℃ to preserve freshness.

Small refrigerated displays: Used for ready-to-eat meals and frozen desserts in convenience stores.

Food Processing Workshops

Small-batch food freezing: Ideal for bakeries (dough cooling) and delis (meat preservation) with low cooling capacity needs.

Laboratory cooling: Cools small equipment (e.g., sample storage cabinets) in research facilities.

Q: What is the MOQ?

A: MOQ is 1 piece, perfect for small businesses or test projects.

Q: What is the Lead Time?

A: 2-4 weeks. For customized voltage or control features, lead time is 3-5 weeks.

Q: Can the Operation Panel Be Installed Remotely?

A: Yes. The panel can be mounted up to 10 meters from the unit, with a dedicated cable (included) for connection.

Q: Is It Compatible with Other Refrigerants?

A: No, the unit is pre-charged with R404A, optimized for low-temperature performance. Do not replace with other refrigerants.

Q: What is the Service Life of the Compressor?

A: With proper maintenance, the Copeland ZSI compressor has a service life of 8-10 years. We offer a 1-year warranty for the compressor.
