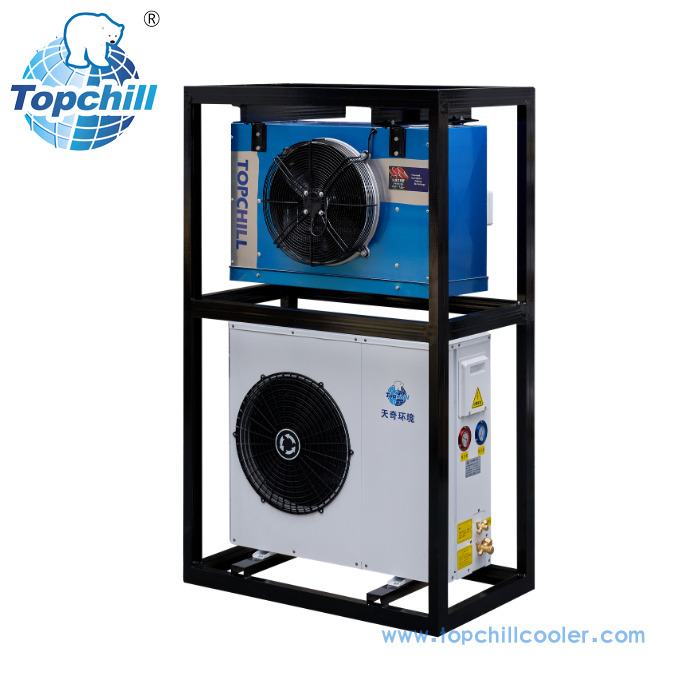

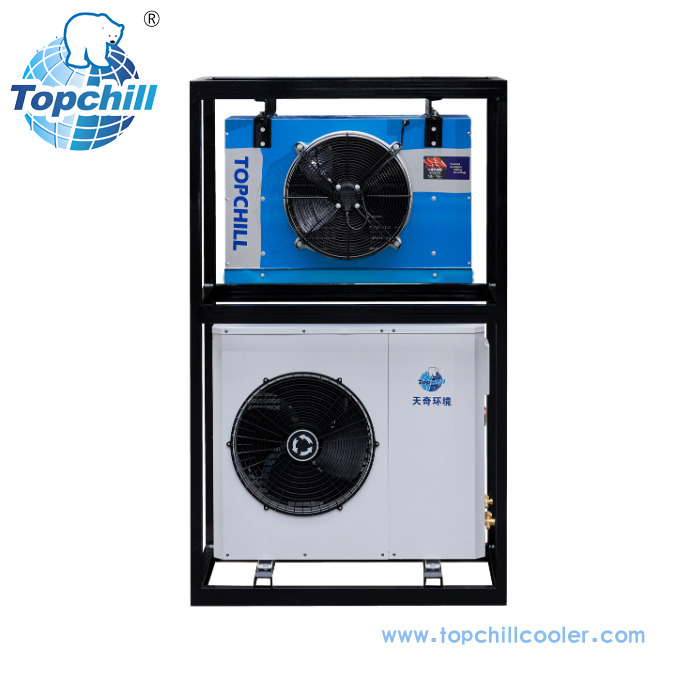

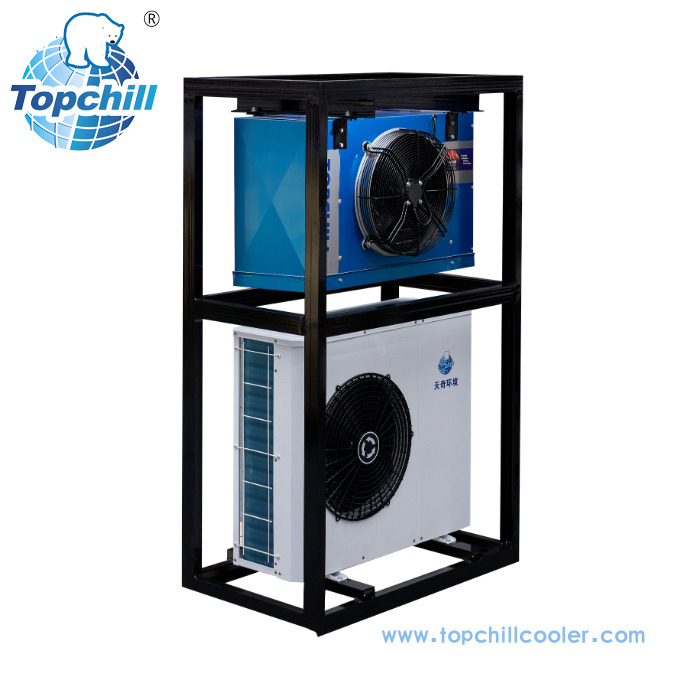

Medium-Temperature Box-Type Unit ZB Reliable

Topchill Refrigeration Box L-type Condensing Units deliver unmatched performance with 35% energy savings, powered by Copeland scroll compressor and IoT-ready connectivity. Designed for harsh environments, these units feature IP66-rated durability and corrosion-resistant stainless steel components, ensuring reliable operation from -30℃ to 50℃.


Availability:



Inquire Add to Basket

CABINET STYLE condensing unit COMPRESSOR DEFROST CONTROL TEMPERATURE CONTROL

Product Advantage

Technical Parameters

Product Uses

FAQ

The Topchill Box-Type Unit ZB Med Temp is a medium-temperature condensing unit powered by Copeland ZB-series scroll compressors, engineered for energy efficiency and reliability. With 35% energy savings, IP66 protection, and IoT connectivity, it operates seamlessly in -30℃ to 50℃ environments—ideal for retail refrigeration, medium-temperature cold storage, and food processing.

CABINET STYLE

High-Efficiency Copeland ZB Compressors

Equipped with Copeland ZB-series scroll compressors (ZB15KQ, ZB21KQ, ZB26KQ, ZB38KQ, ZB45KQ) optimized for medium temperatures (5℃ to -20℃).

Delivers COP up to 2.92, reducing energy costs by 35% vs. traditional medium-temperature units.

Harsh-Environment Resilience

IP66-rated cabinet: Dustproof and water-resistant, suitable for outdoor installation (e.g., supermarket roofs, cold storage yards).

Corrosion-resistant stainless steel components: Withstands moisture and mild salt air, extending service life to 8+ years.

Flexible Control Configurations

Two control options:

Standalone main control board: For supermarkets, milk tanks, and chillers (integrates with low-voltage systems).

Full setup (main control + library temp board + operation panel): Directly usable for medium-temperature cold storage (no extra controllers).

Advanced Monitoring & Safety

Real-time parameter query: Check compressor current, discharge temperature, and condensing temperature via the operation panel.

Multi-protection features: Phase sequence/loss protection, overcurrent protection, high/low pressure protection, and compressor frequent start protection.

IoT-Ready for Smart Management

Supports IoT connectivity: Remotely monitor temperature, adjust settings, and receive fault alerts via mobile app—ideal for chain retail and large cold storage facilities.

The ZB Med Temp unit is available in 2HP-6HP models with core specs (380V/3Ph/50Hz, R404A refrigerant):

Cooling Capacity: 5.05 kW (2HP) to 15.03 kW (6HP) (evaporating temp 5℃/ambient 50℃).

COP: 1.92 (2HP) to 2.92 (6HP), ensuring high energy efficiency for medium-temperature operation.

Compressor: Hermetic scroll type; RLA (rated current) 4.9A (2HP) to 13.1A (6HP); LRA (locked rotor current) 26A (2HP) to 74A (6HP).

Fan System: 1-2 fans (860 rpm); air flow 2400-4800 m³/h; fan motor current 0.68A.

Dimensions & Weight: Height 830-1240mm, length 950mm, width 355mm; weight 74-108kg.

L-Serial box type Topchill condensing unit R404a-Copeland scroll compressor ZB
Specification
Rated Horsepower		HP	2	3	4	5	6
Power Supply		Volt/Ph/Hz	380/3/50
Performance	ET/AT	℃	5/50
	Cooling Capacity	kw	5.05	7.64	8.93	13.05	15.03
	COP	COP	1.92	2.76	2.76	2.82	2.92
Compressor	Model	Copeland	ZB15KQ	ZB21KQ	ZB26KQ	ZB38KQ	ZB45KQ
	Compressor type		Hermetic scroll compressor Copeland ZB serial
	RLA	A	4.9	7.15	8.85	12.8	13.1
	LRA	A	26	40	46	65.5	74
	Oil Recharge	L	1.3	1.24	1.48	2.07	1.77
Fan Motor	Number of Fan	PCS	1	1	1	2	2
	Fan Speed	rpm	860
	Air Flow	m3/h	2400	2400	2400	2x2400	2x2400
	Fan motor Current	A	0.68
	Power supply	Volt/Ph/Hz	380/3/50
Connection Size	Suction diameter	in	3/4"
Connection Size	Liquid supply diameter	in	3/8"		1/2"
Dimension	Height	mm	830	830	830	1240	1240
	Length	mm	950	950	950	950	950
	Width	mm	355	355	355	355	355
Weight		kg	74	77	81	105	108

Performance Data R404A 380/3/50
Model	Condensation Temperature	Cooling Capacity				Evaporation Temperature		Input Power				Evaporation Temperature
		-20	-15	-10	-5	0	5	-20	-15	-10	-5	0	5
ZB15KQE	27	2.82	3.53	4.35	5.31	6.43	7.71	1.18	1.16	1.13	1.10	1.08	1.06
	32	2.59	3.25	4.02	4.92	5.97	7.17	1.33	1.31	1.29	1.26	1.23	1.22
	38	2.27	2.89	3.60	4.43	5.38	6.49	1.57	1.54	1.72	1.46	1.43	1.42
	43	199.00	2.57	3.23	4.00	4.88	5.49	1.82	1.77	1.98	1.67	1.63	1.60
	48	1.69	2.23	2.84	3.55	4.36	5.29	2.12	2.05	1.98	1.92	1.86	1.82
ZB21KQE	27	4.17	5.16	6.33	7.69	9.26	11.05	1.65	1.65	1.65	1.64	1.64	1.63
	32	3.87	4.80	5.90	7.18	8.66	10.35	1.85	1.85	1.85	1.84	1.83	1.82
	38	3.49	4.35	5.36	6.54	7.91	9.50	2.13	2.13	2.13	2.12	2.11	2.09
	43	3.16	3.95	4.88	5.98	7.26	8.74	2.40	2.40	2.39	2.38	2.37	2.35
	48	2.81	3.53	4.38	5.39	6.58	7.96	2.70	2.70	2.69	2.68	2.66	2.64
ZB26KQE	27	4.87	6.03	7.40	8.99	10.85	12.95	1.93	1.93	1.92	1.92	1.91	1.90
	32	4.53	5.62	6.90	8.39	10.15	12.10	2.17	2.17	2.16	2.16	2.15	2.13
	38	4.08	5.08	6.26	7.64	9.25	11.10	2.49	2.49	2.49	2.48	2.47	2.45
	43	3.69	4.62	5.71	6.99	8.48	10.20	2.81	2.80	2.80	2.79	2.77	2.75
	48	3.28	4.13	5.13	6.30	7.69	9.30	3.16	3.16	3.15	3.13	3.11	3.09
ZB38KQE	27	7.14	8.83	10.85	13.15	15.85	18.95	2.76	2.76	2.76	2.75	2.74	2.73
	32	6.63	8.22	10.10	12.30	14.85	17.75	3.10	3.10	3.10	3.09	3.07	3.05
	38	5.98	7.45	9.17	11.20	13.55	16.25	3.57	3.57	3.56	3.55	3.53	3.50
	43	5.41	6.76	8.36	10.25	12.40	14.95	4.02	4.02	4.01	3.99	3.96	3.95
	48	4.81	6.05	7.51	9.23	11.25	13.60	4.52	4.52	4.51	4.49	4.46	4.42
ZB45KQE	27	8.36	10.35	12.70	15.40	18.55	22.20	3.12	3.13	3.12	3.12	3.11	3.09
	32	7.76	9.63	11.85	14.40	17.35	20.80	3.51	3.51	3.51	3.50	3.48	3.46
	38	7.00	8.72	10.75	13.10	15.85	19.05	4.04	4.04	4.03	4.02	4.00	3.97
	43	6.33	7.92	9.79	12.00	14.55	17.55	4.55	4.54	4.53	4.52	4.49	4.45
	48	5.63	7.08	8.79	10.80	13.20	15.95	5.12	5.11	5.10	5.08	5.05	5.00

Energy-Conscious Retail

Supermarkets and grocery stores: Cools open/closed refrigerated displays for fresh produce, dairy, and deli items (5℃ to 10℃), cutting annual electricity costs by 35%.

Convenience stores: Maintains medium temperatures for ready-to-eat meals and beverages, with compact design fitting in small backrooms.

Medium-Temperature Cold Storage

Food distribution centers: Stores fruits, vegetables, and dairy products (2℃ to 8℃) for 3-6 months, preserving freshness.

Pharmaceutical warehouses: Meets GSP standards for storing non-ultra-low temperature drugs (5℃ to 25℃).

Food Processing

Bakery and pastry shops: Cools dough (2℃ to 4℃) for fermentation control; stores finished products (10℃ to 15℃) to extend shelf life.

Deli and meat processing: Maintains 0℃ to 5℃ for fresh meat and poultry, preventing bacterial growth.

Connected Cold Chain Logistics

Refrigerated transport: IoT connectivity allows fleet managers to monitor cargo temperature (real-time) during transit, ensuring product integrity for perishables.

Q: What is the MOQ?

A: MOQ is 1 piece, with preferential pricing for chain retail orders (5+ units).

Q: What is the Lead Time?

A: 2-4 weeks. For bulk orders (20+ units), lead time is 4-5 weeks, with production updates provided.

Q: What Are the Payment Terms?

A: Orders >$10,000: 30% deposit, 70% before goods loading.

Orders ≤$10,000: 100% advance payment.

Q: Can It Be Used for Both Retail and Cold Storage?

A: Yes. The flexible control configurations allow it to switch between retail (main control only) and cold storage (full setup) applications with minimal adjustments.

Q: How to Resolve a Defrost Failure Alarm?

A: Check the defrost heater (replace if faulty).

Verify defrost interval settings (adjust to 4-6 hours if needed).

Clean the defrost sensor (remove frost buildup); contact support if the alarm persists.
