Topchill Air-cooled Condenser FNV Heat Exchanger

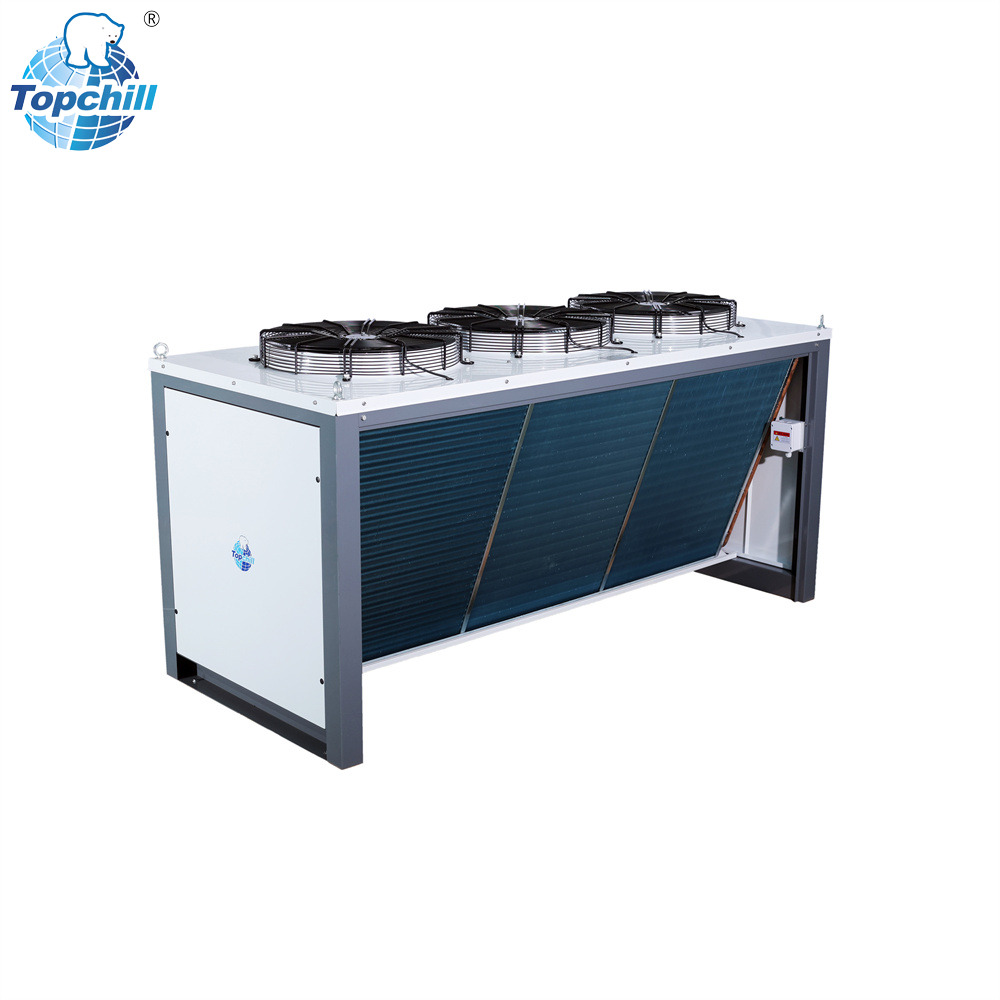

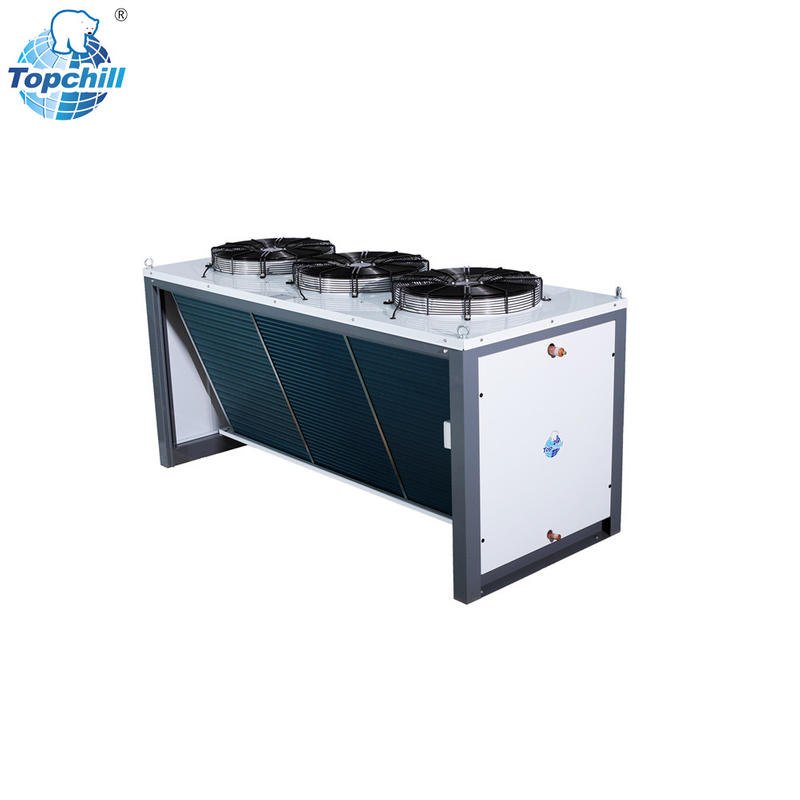

Robust Air-cooled Condenser FNV Heat Exchanger

Topchill air-cooled condenser is an air cooling and heat exchange device used in Freon refrigeration system. Topchill has launched five series of air-cooled condensers, FNH, FNV, FNU, FNVB, and TP, to meet the needs of different customers. According to the size of different systems, the products are divided into top discharge and side discharge forms. They are of good quality and low price. Welcome customers to inquiry


Availability:



Inquire Add to Basket

Condenser FNV Heat Exchanger Heat Exchanger TOPCHILL Refrigeartion COLD STORAGE

Product Advantage

Technical Parameters

Product Uses

FAQ

Condenser FNV Heat Exchanger

Balanced Performance for Medium Systems

Designed for medium-scale refrigeration (500–5000㎡ cold stores), offering a balance of heat dissipation (24840–165600W) and compact size—saves installation space vs. large condensers.

Patented variable-speed fans automatically adjust to ambient humidity (20–95% RH) and cooling loads, avoiding energy waste during low-demand periods.

Enhanced Structural Stability

Reinforced steel frame with anti-vibration pads reduces fan noise and prevents structural deformation under long-term operation (up to 24/7 use).

Side-discharge/top-discharge options: Side-discharge fits narrow spaces (e.g., factory corners), while top-discharge is ideal for open outdoor areas.

Global Compliance & Support

CE, UL, and ASHRAE certified—easily enters markets in Europe, North America, and Australia. Backed by 10-year warranty and 24/7 technical support in 30+ countries.

Standard Condition: Δt=15K, heat exhaust 24840–165600W, heat removal area 72–480㎡.

Fan Configuration: 1–3 fans (4-blade design, diameter 550–750mm), air flow 8720–97125 m³/h, power 600–3300W (380V).

Pipe Sizing: Inlet diameter 16–28mm, outlet diameter 22–54mm (316L stainless steel for corrosion resistance).

Dimensions: Length 950–3400mm, width 900–1175mm, height 860–1260mm (lower height than FNVB series, better for low-clearance areas).

Mounting: Mounting holes (D×E) 510×650mm to 2350×925mm; use M8 bolts (110 KG load capacity each) for secure installation.

	∆t=15k(kw)		Fan						Diameter of outler tube	Dimensions			Mounting dimension
Model Specifications	heat exhaust	Heat removal area	Quantity	Diameter of fan blade	Air volume	Power	Voltage	Diameter of inler tube		L	B	H	D	E
Model Specifications	heat exhaust	Heat removal area	Quantity	Diameter of fan blade	Air volume	Power	Voltage	Diameter of inler tube		L	B	H	D	E
	W	㎡	N	mm	m³/h	W	V	mm	mm	mm	mm	mm	mm	mm
FNV-25/72	24840	72	1	4D550	8720	600	380	22	16	950	900	880	870	650
FNV-30/87	30102	87	1	4D600	10820	780	380	25	16	1100	1000	860	1020	750
FNV-39/110	39050	110	2	4D500	2×6570	2×450	380	25	16	1400	900	880	1320	650
FNV-45/130	44850	130	2	4D550	2×8720	2×600	380	28	19	1550	900	880	1470	650
FNV-55/155	55025	155	2	4D600	2×8720	2×600	380	28	19	1600	1000	980	1520	750
FNV-64/185	63825	185	2	4D630	2×10820	2×780	380	28	22	1700	1000	1080	1620	750
FNV-73/210	72660	210	2	4D630	2×12200	2×800	380	32	22	1750	1000	1180	1670	750
FNV-83/240	82800	240	2	Φ700	2×15000	2×750	380	32	22	1900	1175	1260	1820	925
FNV-104/300	103800	300	2	Φ750	2×19000	2×1100	380	35	25	2250	1175	1260	2170	925
FNV-111/320	111040	320	2	Φ750	2×19000	2×1100	380	38	25	2350	1175	1260	2270	925
FNV-125/360	124560	360	3	Φ650	3×13200	3×550	380	42	28	2650	1175	1260	2570	925
FNV-138/400	138400	400	3	Φ700	3×15000	3×750	380	42	28	2950	1175	1260	2870	925
FNV-166/480	165600	480	3	Φ750	3×19000	3×1100	380	54	28	3400	1175	1260	3320	925

Medium-Scale Food Cold Stores

Stores frozen foods (-18°C) and fresh produce (0°C) in regional logistics centers (500–2000㎡). Balanced heat dissipation handles daily load fluctuations from delivery trucks.

Commercial Refrigeration Racks

Paired with supermarket refrigeration racks (e.g., frozen food cabinets, dairy coolers). Low height (860–1260mm) fits on supermarket rooftops without exceeding height limits.

Industrial Workshop Cooling

Cools plastic injection molding machines and metal processing equipment (generating 5–20KW heat). Corrosion-resistant design handles factory dust and oil vapors.

Hotel & Hospital Refrigeration

Used in hotel kitchens and hospital pharmacy coolers. Low noise (55 dB) avoids disturbing guests/patients, and GMP-compliant materials meet healthcare hygiene standards.

Q: How does FNV differ from FNVB?

A: FNV has a lower height (860–1260mm vs. FNVB’s 880–1980mm) for low-clearance areas; FNVB is for larger systems, while FNV targets medium-scale needs.

Q: Can it be connected to multiple refrigeration units?

A: Yes, 1 FNV condenser can support 2–3 small refrigeration units (total load ≤ its heat dissipation capacity) with a manifold.

Q: What is the noise level of the side-discharge model?

A: 55 dB(A) (same as top-discharge), thanks to the 4-blade fan design and anti-vibration pads.

Q: What is the MOQ and payment terms?

A: MOQ is 1 piece; payment terms: 30% deposit, 70% before loading; 100% advance for orders under 10,000 USD.
