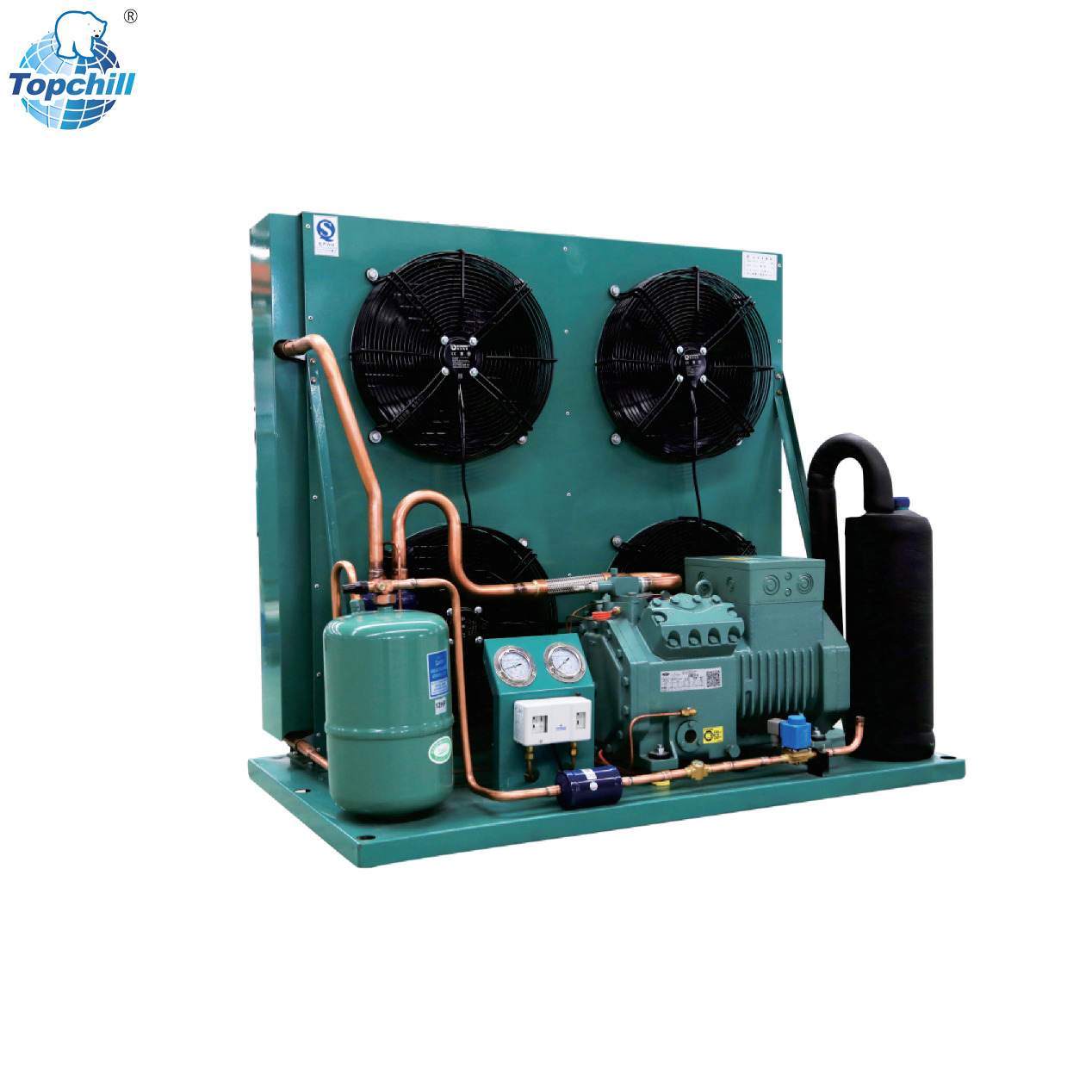

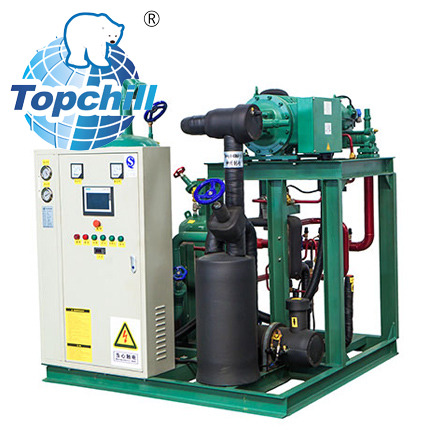

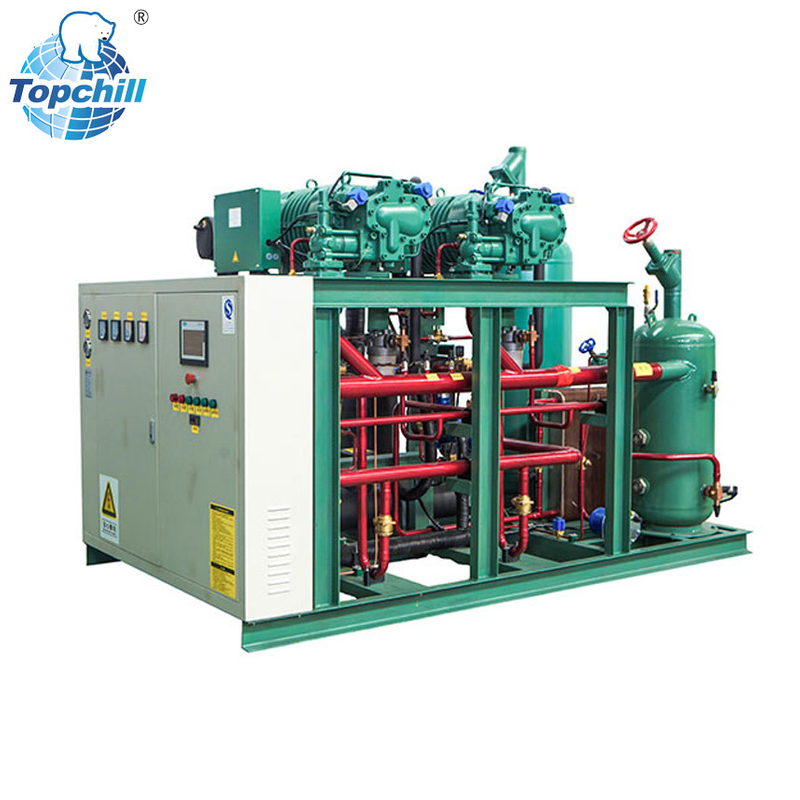

Semi-Hermetic Air-Cooled Condensing Unit

Semi-Hermetic Air-Cooled Condensing Unit High-Performance

The semi-hermetic air-cooled condensing unit features a compact structure, available with a protective cover, makint it sturdy, durable, and aesthetically pleasing. A rational air intake mechanism ensures adequate cooling of the compressor cylinder head. The air-cooled unit utilizes efficient W-shaped internally threaded pipes tailored to specific operating conditions, improving heat transfer and minimizing overall dimensions. It is compatible with a variety of refrigerants, including R22, R134A, and R404A. It features an oil separator, high and lower pressure controls, a solenoid valve, a filter drier, high and lower pressure gauges, a large-capacity liquid receiver, and a high-efficiency condenser for a highly efficient combination.


Availability:



Inquire Add to Basket

CABINET STYLE condensing unit COMPRESSOR DEFROST CONTROL TEMPERATURE CONTROL

Product Advantage

Technical Parameters

Product Uses

FAQ

The Topchill Semi-Hermetic Air-Cooled Condensing Unit is a rugged, multi-purpose cooling solution featuring semi-hermetic compressors and efficient W-shaped internally threaded coils. Compatible with R22, R134A, and R404A refrigerants, it excels in commercial refrigeration, small industrial processes, and space-constrained areas—thanks to its compact design and reliable protection systems.

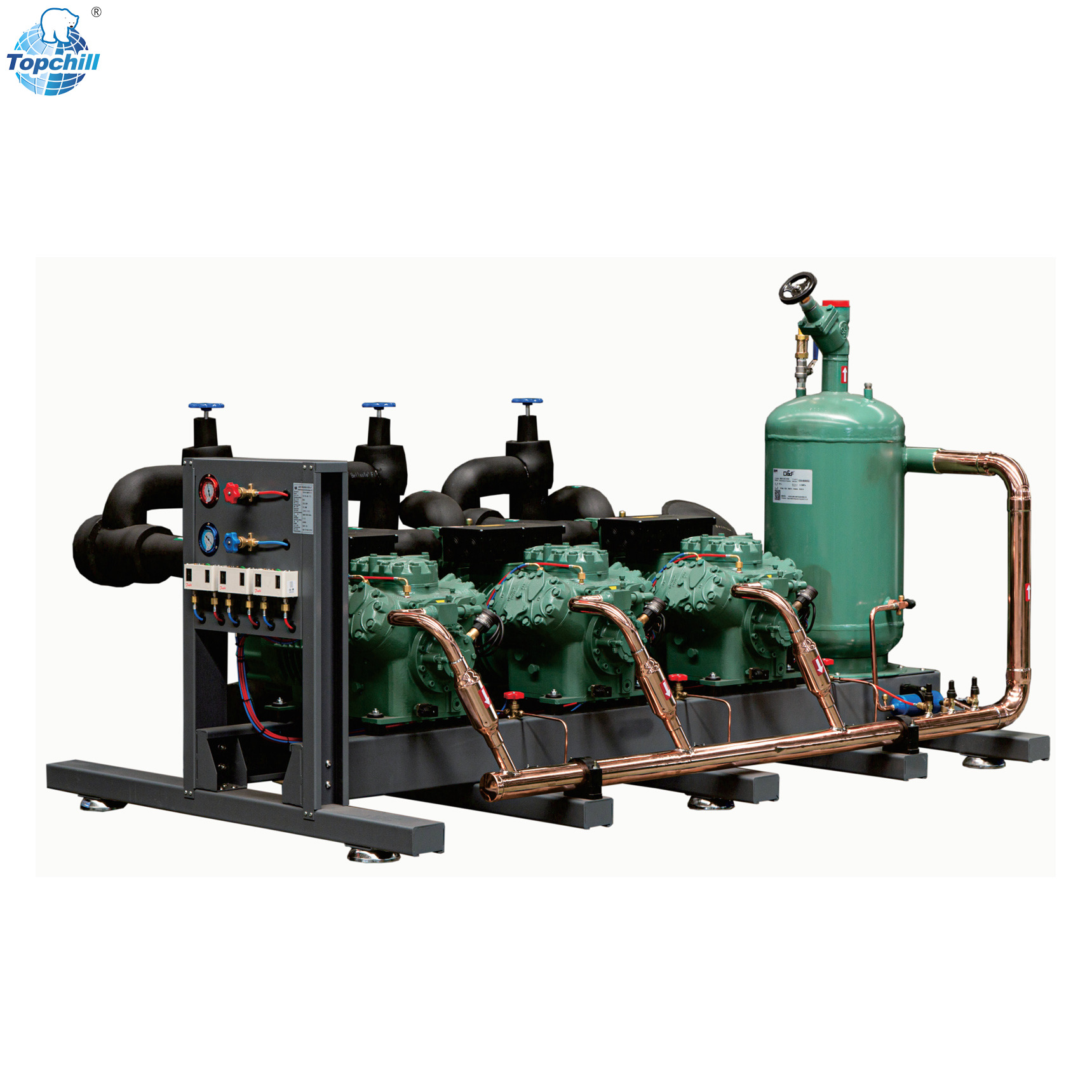

condensing unit

Multi-Refrigerant Compatibility

Works with R22, R134A, and R404A refrigerants, adapting to different application needs (e.g., R134A for eco-friendly projects, R404A for low temperatures).

No need to replace the unit for refrigerant upgrades, reducing long-term costs.

High-Performance Heat Exchangers

Equipped with W-shaped internally threaded pipes in the condenser: Improves heat transfer efficiency by 25% vs. smooth pipes, reducing overall unit size.

Tailored to different operating conditions (e.g., high ambient temp 43℃), ensuring consistent cooling.

Comprehensive System Components

Integrates essential parts: Oil separator (reduces oil carryover), high/low pressure controls, solenoid valve, filter drier, high/low pressure gauges, and large-capacity liquid receiver.

All components are pre-assembled, saving on-site installation time and ensuring system compatibility.

Robust Protection & Durability

Motor protection: Electronic modules and thermal protectors prevent overheating.

Crankcase heaters: Avoid liquid hammer (damage from liquid refrigerant in the compressor).

Optional protective cover: Enhances durability (dustproof, rainproof) for outdoor installation.

Compact & Balanced Design

Compact structure: Fits in small spaces (e.g., restaurant backyards, server rooms).

Optimized vibration damping: Reduces noise and vibration, extending component life.

The unit covers 3HP-20HP models (e.g., TQB-FJZ-V3HP, TQB-FJZ-V20HPH) with core specs based on R22 refrigerant (380V/50Hz):

Cooling Capacity: Ranges from 3.73 kW (-30℃ evaporating temp, 27℃ ambient) to 57.66 kW (10℃ evaporating temp, 27℃ ambient).

Power Consumption: 2.29 kW (3HP, -30℃) to 15.67 kW (20HP, 32℃ ambient).

Compressor: Semi-hermetic type; rated current varies by model (e.g., 4.11A for 3HP, 15.36A for 20HP).

Condenser: Air-cooled with W-shaped internally threaded pipes; fan systems vary by model (air flow up to 21640 m³/h).

Operating Range: Ambient temp 27℃-43℃; evaporating temp -30℃ to 10℃.

SEMI HERMETIC COMPRESSOR & AIR-COOLED CONDENSING UNIT CAPACITY

R22 Watt(50Hz 380v)											Watt(50Hz 380v)
Model	Ambient temperature (℃)	↓	Capacity Qo(watt)					Power.Consumption Pe(kw)
			Evaporating temperature(℃)
			10	7.5	5	0	-5	-10	-15	-20		-25	-30
TQB-FJZ-V3HP	27	Qo					10460	8720	6840	5850		4750	3730
	27	Pe					4.11	3.66	3.27	3.01		2.63	2.29
	32	Qo					9790	8040	6350	5440		4350	3430
	32	Pe					4.31	3.82	3.38	3.13		2.72	2.38
	43	Qo							5420	4650		3570	2690
	43	Pe							3.67	3.49		3.01	2.59
TQB-FJZ-V5HP	27	Qo Pe	18610	17280	15960	13270	11020	9120	7190	6050		4810	5570
	27	Pe	4.68	4.46	4.36	4.05	3.81	3.43	3.09	2.91		2.72	2.53
	32	Qo	16640	15370	14100	11890	10330	8520	6680	5280		4520	3580
	32	Pe	4.97	4.86	4.77	4.57	3.99	3.62	3.24	3.03		2.82	2.61
	43	Qo Pe			12560	10250	8790	7170	5610	4340		3070
	43	Pe			5.41	4.96	4.46	3.94	3.53	3.32		3.11
TQB-FJZ-V4HPH	27	Qo					12150	10210	8160	7130		5760	4550
	27	Pe					5.15	4.63	4.13	3.77		3.37	2.96
	32	Qo					11450	9480	7540	6550		5270	4190
	32	Pe					5.37	4.75	4.27	3.92		3.47	3.06
	43	Qo							6410	5570		4290	3260
	43	Pe							4.76	4.32		3.78	3.16
TQB-FJZ-V6HPH	27	Qo	21640	20170	18710	15670	13110	10930	8680	7380		6080	4760
	27	Pe	6.45	6.16	5.88	5.31	4.81	4.34	3.91	3.62		3.33	3.02
	32	Qo	19310	17920	16490	14080	12250	9850	7870	6430		4980	3520
	32	Pe	6.87	6.64	6.23	5.69	5.06	4.52	4.03	3.84		3.62	3.41
	43	Qo			14570	11980	10350	8510	6610	5550		4490
	43	Pe			7.04	6.29	5061	4.96	4.44	4.17		3.89
TQB-FJZ-V5HP	27	Qo					15290	12790	10310	8610		7020	5540
	27	Pe					6.06	5.45	4.82	4.38		3.92	3.48
	32	Qo					14460	12060	9560	8010		6430	4940
	32	Pe					6.36	4.65	5.06	4.57		4.06	3.57
	43	Qo							8090	6750		5220	3960
	43	Pe							5.38	4.87		4.38	3.91
TQB-FJZ-V7HPH	27	Qo	26650.00	24840	23010	19240	16060	12940	10610	8910		6840	4760
	27	Pe	7.25	6.98	6.71	6.17	5.72	5.10	4.67	4.23		3.76	3.27
	32	Qo	23810	22740	21630	17870	15040	12210	9860	8130		6080	4130
	32	Pe	7.81	7.47	7.18	6.65	6.01	5.44	4.94	4.41		3.92	3.51
	43	Qo			18610	15320	17630	10290	8270	6780		5190
	43	Pe			8.25	7.48	7.52	6.05	5.38	4.66		4.05
TQB-FJZ-V10HP	27	Qo					16650	14840	12030	9780		7770	6010
	27	Pe					7.95	6.71	6.01	5.37		4.74	4.14
	32	Qo						13820	11160	9010		7110	5410
	32	Pe						7.05	6.27	5.55		4.89	4.21
	43	Qo							9480	7290		5570	4330
	43	Pe							6.74	6.08		5.28	4.38
TQB-FJZ-V9HPH	27	Qo	31580	28460	27330	22910	19170	16010	12870	10400		7830	6310
	27	Pe	9.31	8.87	8.42	7.67	7.01	6.36	5.76	5.19		4.63	4.05
	32	Qo	29740	27710	25720	21310	17980	14950	11980	9420		7260	5350
	32	Pe	10.04	9.54	9.03	8.15	7.41	6.71	6.08	5.38		4.68	4.05
	43	Qo					15320	12620	9970	7840		5710
	43	Pe					8.47	7.58	6.67	5.82		4.96

1.The refrgerating effect is got on the basis of suction temperature 20℃ and liquid with over-cold.

2.If the service temperature is very low,a cooling spray system should be equiped .For the details please refer to the compressor instructions.

SEMI HERMETIC COMPRESSOR &AIR-COOLED CONDENSING UNIT CAPACITY

R22												Watt(50Hz 380v)
Model	(℃) Ambient temperature	↓	Capacity Qo(watt) Power.ConsumptionPe(kw)
			Evaporating temperature(℃)
			10	7.5	5	0	-5	-10	-15	-20	-25	-30
TQB-FJZ-V8HP	27	Qo					23570	19850	16280	13390	10610	8410
	27	Pe					9.43	8.38	7.43	6.56	5.82	5.04
	32	Qo					22090	18570	15210	12460	10060	7710
	32	Pe					9.89	8.82	7.71	6.84	6.04	5.23
	43	Qo							12930	10640	8210	6240
	43	Pe							8.35	7.28	6.31	5.41
TQB-FJZ- V12HPH	27	Qo	43610.00	38480	33350	28320	24260	20280	16510	13460	11410	8470
	27	Pe	12.43	11.88	10.86	9.83	8.96	7.97	7.21	6.39	5.64	4.93
	32	Qo	39860	35650	31340	27130	22730	18970	15420	12560	10620	7680
	32	Pe	12.68	12.07	11.48	10.38	9.42	8.43	7.44	6.54	5.66	8.12
	43	Qo			26640	23610	20070	16490	13310	10740	8610
	43	Pe			13.06	11.64	10.46	9.25	8.11	7.07	6.59
TQB-FJZ-V10HP	27	Qo					27330	22980	18830	15490	12630	9730
	27	Pe					10.98	9.75	8.71	7.59	6.67	5.76
	32	Qo					25670	21530	17590	14420	11650	8940
	32	Pe					11.51	10.15	8.92	7.81	6.82	5.86
	43	Qo							14950	12650	9530	7240
	43	Pe							9.36	8.29	7.21	6.08
TQB-FJZ- V15HPH	27	Qo	51650	48230	44610	36940	30860	25170	20210	16270	12950	10010
	27	Pe	12.07	11.72	11.17	10.32	8.58	8.69	7.87	7.04	6.25	5.35
	32	Qo	48680	45350	42010	33680	28720	23910	18950	15390	12060	9160
	32	Pe	12.96	12.43	11.91	10.94	10.01	9.11	8.21	7.31	6.46	5.65
	43	Qo			36520	31110	25620	20790	16940	13680	10480
	43	Pe			13.46	12.28	11.15	10.13	8.95	7.98	6.89
TQB-FJZ-V12HP	27	Qo					33340	27680	22860	18770	14640	11740
	27	Pe					12.34	12.12	9.87	8.75	7.67	6.53
	32	Qo					31370	26550	21670	17720	14140	10850
	32	Pe					13.15	11.56	10.34	8.95	7.89	6.63
	43	Qo							18820	15090	11640	8810
	43	Pe							10.79	9.64	8.29	6.95
TQB-FJZ- V20HPH	27	Qo	57660	53390	49910	41890	35540	29480	25060	19070	15050	11580
	27	Pe	15.36	14.39	13.89	12.77	11.57	10.56	9.39	8.42	7.31	6.28
	32	Qo	54600	50620	46790	39720	33740	27980	23810	18520	14630	11260
	32	Pe	15.67	15.03	14.52	13.38	12.13	11.11	9.77	8.50	7,396.35
	43	Qo			44110	36880	31060	25010	20630	16350	12700
	43	Pe			15.05	14.47	13.01	12.13	10.38	8.94	6.35

1.The refrigerating effect is got on the basis of suction temperature 20℃ and liquid with over—old.

2.If the service temperature is very low.a cooling spray system should be equiped.For the details please refer to the compressor instructions.

Commercial Refrigeration

Supermarkets and convenience stores: Cools walk-in coolers, frozen food display cases, and beverage coolers (uses R404A for low temps).

Restaurants and cafes: Cools ice machines, refrigerated prep tables, and wine coolers (uses R134A for eco-friendliness).

Small Commercial Space Cooling

Office server rooms: Maintains stable temperatures (20-25℃) for IT equipment, preventing overheating.

Small shops and boutiques: Provides quiet, efficient cooling without occupying much floor space.

Industrial Process Cooling

Small manufacturing lines: Cools plastic extruders, laser cutting machines, and electronic component testers.

Laboratory equipment: Cools analytical instruments (e.g., spectrometers) that require precise temperature control.

Space-Constrained Applications

Urban apartments and small clinics: Compact design fits in narrow balconies or utility rooms; low noise (≤70 dB[A]) avoids disturbance.

Q: What is the MOQ?

A: MOQ is 1 piece, suitable for both small businesses and large industrial orders.

Q: What is the Lead Time?

A: 2-4 weeks. For models with custom protective covers, lead time is 3-5 weeks.

Q: Can It Be Used Outdoors?

A: Yes, with the optional protective cover (dustproof, rainproof). Ensure the unit is installed on a level surface with 1-meter clearance around for air flow.

Q: What Refrigerant Should I Use for Low-Temperature Applications?

A: We recommend R404A for evaporating temperatures below -15℃; R22 is suitable for -15℃ to 10℃; R134A for 0℃ to 10℃ (eco-friendly option).

Q: How to Resolve a High-Pressure Alarm?

A: Check condenser air flow (clean filters/coils if blocked).

Verify ambient temperature (avoid operating above 43℃).

Check for refrigerant overcharge (release excess if needed).

Contact support if the alarm persists.
