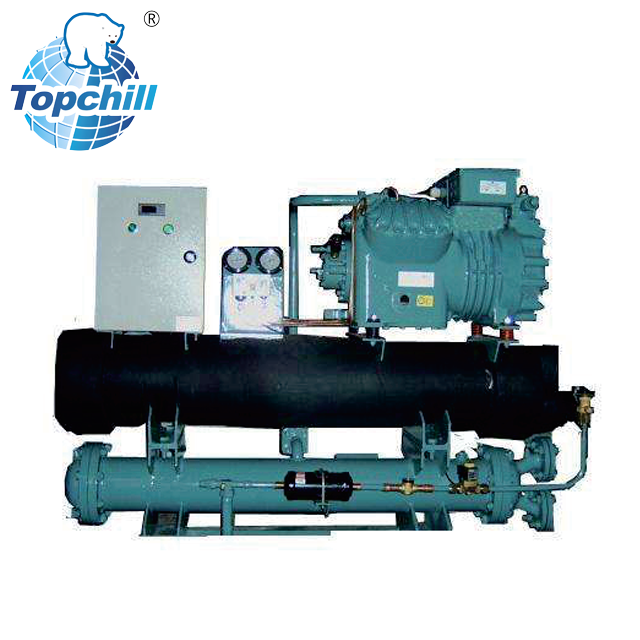

The Topchill Water-cooled Semi-hermetic Compressor Chiller (4–100HP) is a robust industrial cooling solution engineered for continuous operation in harsh environments. It features a semi-hermetic reciprocating compressor—known for long service life—and a high-efficiency shell-and-tube condenser, delivering stable cooling capacity for plastic processing, food production, and chemical industries. With a temperature range of +10°C to -25°C, it meets both medium and low-temperature application needs, while its compact design saves 30% of installation space compared to traditional water-cooled chillers.
Reliable Semi-hermetic Compressors: The semi-hermetic reciprocating compressor (models: TQBZ4–TQBW50) is designed for 20,000+ hours of trouble-free operation. Its hermetic structure prevents refrigerant leaks, reducing maintenance frequency by 50%.
Superior Energy Efficiency: Advanced refrigerant throttling (external balanced temperature-sensing thermal expansion valve) and optimized heat exchange design reduce power consumption by 25% while maintaining stable cooling capacity.
Wide Temperature Adaptability: Operates seamlessly from +10°C (for dairy processing) to -25°C (for frozen food storage), eliminating the need for multiple chillers in mixed-temperature facilities.
Intelligent Precision Control: A microprocessor-based controller manages temperature with ±0.3°C accuracy. It also provides real-time alerts for abnormalities (e.g., high/low pressure, water flow loss), protecting the system from damage.
Space-Saving Compact Design: The integrated layout (compressor, condenser, and controller in one unit) reduces installation space by 30%, making it ideal for factories with limited floor area.
Comprehensive Safety Protections: Equipped with 8+ safety devices, including compressor overheat protection, power phase-loss protection, and cold water over-low temperature protection, ensuring 24/7 safe operation.
This chiller series covers a cooling capacity range of 11.2 kW (4HP, model TQ–LSB04) to 245.6 kW (100HP, model TQ–LSB100). Total power consumption ranges from 3.58 kW to 66.9 kW, with a maximum running current of 7.6 A to 184 A (all models use 380V/50HZ/3PH power supply). The refrigerant is R22 (environmentally compatible with Freon systems), and the refrigeration circuit is 1 for models below 50HP and 2 for 60HP–100HP (ensuring redundancy). The shell-and-tube condenser has a water inlet temperature of 30°C and outlet temperature of 35°C, with a water flow rate of 3 m³/h (TQ–LSB04) to 60.4 m³/h (TQ–LSB100). The air cooler (shell-and-tube type) uses water or glycol as the secondary refrigerant, with an inlet temperature of 12°C, outlet temperature of 7°C, and a flow rate of 2.4 m³/h to 46.4 m³/h. Connecting pipe sizes range from 1–1/2” to 4”, compatible with standard industrial pipelines.
| AIR-COOLED WATER COOLING UNIT TECHNICAL PARAMETERS | |||||||||||||
 | TQ–LSB04 | TQ–LSB05 | TQ–LSB08 | TQ–LSB10 | TQ–LSB15 | TQ–LSB20 | TQ–LSB30 | TQ–LSB35 | TQ–LSB40 | TQ–LSB50 | TQ–LSB60 | TQ–LSB100 | |
| Cooling capacity(kw) | 11.2 | 15 | 21.6 | 29.3 | 43.2 | 47.9 | 69.5 | 89.8 | 102.8 | 122.8 | 139 | 245.6 | |
| Total power(Kw) | 3.58 | 4.48 | 6.07 | 9.11 | 12.11 | 12.34 | 18.16 | 22.82 | 26.99 | 33.18 | 36.32 | 66.9 | |
| Max.running current(A) | 7.6 | 10.1 | 15 | 17.6 | 24.3 | 37 | 53 | 61 | 78 | 92 | 106 | 184 | |
| Power supply | 380V/50HZ/3PH | ||||||||||||
| Refrigerant throttling mode | External balanced temperature sensing thermal expansion valve | ||||||||||||
| Refrigerant | R22 | ||||||||||||
| Refrigerating circult | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | |
| Compressor | Type | Semi-hermetic piston type | |||||||||||
| Model | TQBZ4 15H | TQBZ5 18H | TQBZ8 27H | TQBZ10 36H | TQBZ15 54H | TQBV20 56H | TQBV30 84.5H | TQBW35 110.5H | TQBW40 126.8H | TQBW50 151.6H | TQBV30 84.5H | TQBW50 151.6H | |
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | |
| Condenser | Form | High-effciency shell and tube type heat exchanger | |||||||||||
| Inlet Temperature℃ | 30 | ||||||||||||
| Outlet Temperature℃ | 35 | ||||||||||||
| Rate of Flow(m³/h) | 3 | 3.8 | 5.4 | 7.2 | 10.8 | 12.1 | 17.1 | 22.3 | 25.6 | 30.2 | 34.2 | 60.4 | |
| Specification of connecting pipe | 1−2/2" | 1−1/2" | 1−1/2" | 1−1/2" | 2" | 2" | 2−1/2" | 2−1/2" | 3" | 3" | 3" | 4" | |
| Air cooler | Form | High-effciency shell and tube type heat exchanger | |||||||||||
| Secondary Refrigerant | Water,glycol | ||||||||||||
| Inlet Temperature℃ | 12 | ||||||||||||
| Outlet Temperature℃ | 7 | ||||||||||||
| Rate of Flow(m³/h) | 2.4 | 3 | 4.8 | 6.1 | 8.6 | 9.1 | 13.3 | 16.9 | 19.7 | 23.2 | 26.6 | 46.4 | |
| Specification of connecting pipe | 1−2/2" | 1−1/2" | 1−1/2" | 1−1/2" | 2" | 2" | 2−1/2" | 2−1/2" | 3" | 3" | 3" | 4" | |
| Running control mode | Fully automatic | ||||||||||||
| Safety protection device | Unit overload protection; compressor overheat protection: high and low voltage, oil pressure protection, power supply phase loss protection; cold water temperature too low protection, flow protection | ||||||||||||
| Remarks: | |||||||||
| The working conditions of assembly unit under nominal refrigerating effect and power:condensing temperature 40℃,inlet water temperature+12℃, outletwater temperature+7℃ . |
| NOMENCLATURE |
| TQ-LSB30 |
| ■ TQ: Topchill brand |
| ■ LS: Stands for industrial water cooling units(chiller) |
| ■ B: Semi-hermetic compressor |
| ■ F: F-air cooled chiller; water cooled chiller ommitted |
| ■ 30: compressor motor power 30HP |
