Many facility managers and project engineers hear the term Air Cooled Chiller in proposals and equipment lists, yet still wonder what the machine actually does inside. This system is not just a metal box with fans on top; it is a complete heat management solution designed to remove unwanted heat from a process or building and release it safely into the surrounding air. Understanding how an air-cooled system works makes it easier to evaluate performance, installation needs, and long-term reliability. In this article, we explain the full cooling cycle in clear language and connect each step to real industrial and commercial applications.
The most important concept behind an Air Cooled Chiller is simple: it does not create cold; it moves heat. In factories, commercial buildings, data rooms, or process environments, heat is constantly generated by machinery, lighting, electronics, and production systems. If that heat is not controlled, temperatures rise, equipment performance drops, and product quality may suffer.
An air-cooled system absorbs heat from circulating water or process fluid through an internal heat exchanger. That heat is transferred into refrigerant inside the evaporator section of the chiller. Once the heat has been absorbed, it is carried through the system and eventually released outdoors through condenser coils using airflow.
This separation between absorbing heat and rejecting heat is critical. The chilled water loop cools the load, while the condenser section releases that energy to the atmosphere. By continuously moving heat away from the application, the system maintains stable operating temperatures.
In practical installations, the chiller acts as the central cooling source. It connects to:
Production equipment requiring temperature stability
Injection molding or laser machinery
Air handling units in commercial buildings
Process cooling loops in industrial workshops
Data cabinets and electronic systems
The chiller supplies cooled water to these systems. After absorbing heat, the water returns to the unit to be cooled again. This continuous loop is what keeps the temperature under control.
An Air Cooled Chiller operates through four key components that work together in a closed refrigeration cycle.
The compressor is often called the heart of the system. Its role is to compress low-pressure refrigerant vapor coming from the evaporator. When the refrigerant is compressed, its pressure and temperature increase significantly.
This rise in temperature is intentional. It prepares the refrigerant for the next step, where heat will be transferred out of the system.

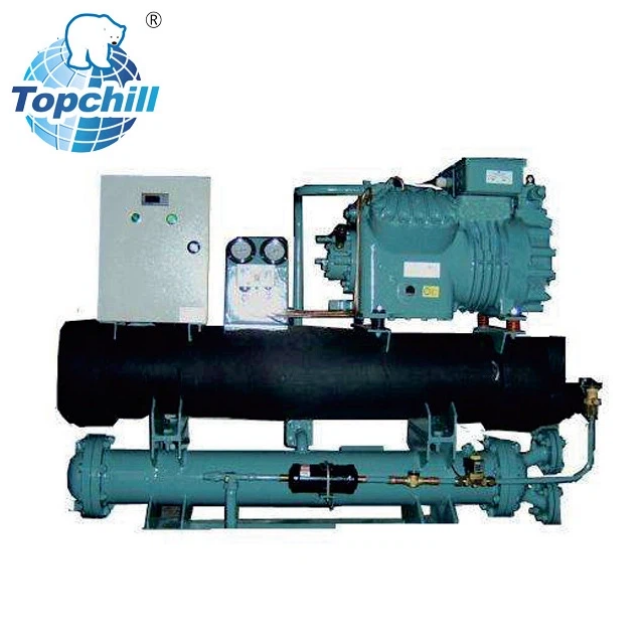

In TOPCHILL AIR COOLER units, a semi-hermetic compressor design is commonly used. This structure is engineered for durability, serviceability, and continuous operation, making it highly suitable for industrial and commercial applications that run for extended hours.
The condenser is where heat is rejected to the environment. High-temperature refrigerant vapor enters the condenser coils. Fans draw ambient air across these coils. As air passes over the surface, heat transfers from the refrigerant into the outdoor air.
Because the system uses air instead of water to remove heat, no cooling tower is required. This simplifies installation and eliminates the need for a separate condenser water loop.
After heat has been released in the condenser, the refrigerant changes into a high-pressure liquid. The expansion device reduces its pressure quickly. When pressure drops, the refrigerant temperature also decreases.
This controlled pressure reduction prepares the refrigerant to absorb heat again when it returns to the evaporator.
The evaporator is where useful cooling happens. Warm water from the process loop enters the evaporator heat exchanger. Inside, low-temperature refrigerant absorbs heat from the water.
As heat transfers into the refrigerant, the water temperature drops. The cooled water then returns to the application, while the refrigerant moves back to the compressor to begin the cycle again.
Understanding the sequence makes the process clearer.
Warm process water flows into the evaporator. Refrigerant inside the heat exchanger absorbs the heat energy. The water temperature drops and is sent back to the system it is cooling.
The refrigerant vapor, now carrying heat, enters the compressor. Compression raises its pressure and temperature, preparing it for efficient heat rejection.
The hot refrigerant flows into the condenser coils. Air moves across the coils and removes the heat. The refrigerant cools and becomes a liquid again.
The expansion device lowers the pressure of the liquid refrigerant. Its temperature drops sharply. It returns to the evaporator ready to absorb more heat.
This continuous cycle runs as long as cooling demand exists.
The decision to use air as the heat rejection medium has significant system-level effects.
Water-cooled systems require cooling towers, water pumps, piping networks, and water treatment. An Air Cooled Chiller eliminates these components entirely. Heat is released directly into the surrounding air through condenser fans.
This reduces installation complexity and space requirements.
Because there is no condenser water loop, the system uses fewer pipes, valves, and pumps. This leads to:
Faster installation
Lower initial infrastructure cost
Reduced maintenance workload
Fewer potential leakage points
Air-cooled systems are often installed outdoors or on rooftops. Their compact footprint and self-contained design allow flexible positioning. For facilities with limited mechanical room space, this is a major advantage.
Industrial cooling often requires long operating hours. A semi-hermetic compressor is built with a durable structure designed for steady performance under heavy load.
Unlike fully sealed designs, semi-hermetic compressors allow access for servicing internal components. This supports long-term maintainability and reduces total equipment lifecycle cost.
Downtime in manufacturing environments can be expensive. A service-friendly compressor design helps technicians perform inspections and repairs more efficiently, supporting consistent production.
TOPCHILL AIR COOLER designs its Air-cooled Semi-hermetic Chiller systems with long-term operation in mind. Quality materials and corrosion-resistant components ensure durability in challenging environments.
Understanding how an Air Cooled Chiller works helps identify where it performs best.
Manufacturing workshops with moderate heat loads benefit from air-cooled systems because they avoid the complexity of water infrastructure.
Electronic systems generate constant heat. Stable chilled water circulation protects hardware reliability.
In regions where water conservation is important, air-cooled heat rejection is often the preferred solution.
Component | What It Does | What the Reader Should Remember |
Compressor | Raises refrigerant pressure | Drives the cycle forward |
Condenser | Rejects heat to outdoor air | No cooling tower needed |
Expansion Device | Lowers pressure and temperature | Prepares refrigerant to absorb heat again |
Evaporator | Absorbs heat from process water | This is where useful cooling happens |
This table summarizes the entire process in a simplified format.
A properly designed Air Cooled Chiller works by continuously removing heat from a process loop and releasing it into the surrounding air through a controlled refrigeration cycle. From the evaporator absorbing heat to the condenser discharging it outdoors, each component plays a precise role. For facilities seeking reliable performance without the complexity of cooling towers, an air-cooled cooling system provides a practical and efficient solution. If you would like to learn more about how TOPCHILL AIR COOLER can support your cooling project, contact us to discuss your specific application requirements.
An Air Cooled Chiller removes heat from circulating process water and releases that heat into the surrounding air, maintaining stable temperatures for industrial or commercial use.
Because heat is rejected directly to ambient air through condenser fans, no condenser water loop or cooling tower is required.
Yes. When equipped with a semi-hermetic compressor and durable components, it is designed to operate steadily for long hours in demanding environments.
It is often installed outdoors, on rooftops, or in compact equipment areas where water infrastructure is limited or unnecessary.
