When it comes to refrigeration systems, one of the most important components is the evaporator. Whether you are using a refrigeration unit for industrial purposes, air conditioning, or even in the food and beverage industry, the evaporator plays a crucial role in the cooling process. Understanding how an evaporator works can help you maintain your systems more effectively, troubleshoot potential issues, and optimize performance.
In this article, we will dive deep into what an evaporator is, how it functions within a refrigeration system, and explore its various types. By the end of this guide, you will have a solid understanding of evaporators and their importance in refrigeration technology.

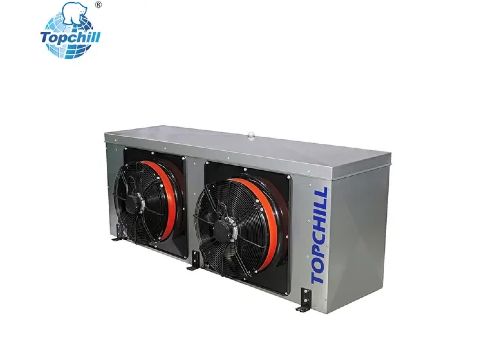

An evaporator is a key component in refrigeration and air conditioning systems. Its primary function is to absorb heat from the environment, thereby cooling the surrounding air or water. The evaporator is part of the refrigeration cycle, which also includes a compressor, condenser, and expansion valve. Together, these components work to transfer heat from inside a system to the outside, keeping the environment cool and comfortable.
In simple terms, an evaporator works by allowing a refrigerant liquid to evaporate (or vaporize) inside the system. As the refrigerant absorbs heat from the surrounding air or water, it changes from a liquid to a gas, and this process helps reduce the temperature of the environment.
To fully understand how an evaporator works, it is essential to understand the basic refrigeration cycle, in which the evaporator is a critical component:
Compression: The cycle begins when the compressor pumps refrigerant gas through the system under high pressure. This gas is then moved into the condenser.
Condensation: The refrigerant gas is cooled in the condenser, where it changes into a high-pressure liquid.
Expansion: The high-pressure liquid refrigerant then passes through an expansion valve, where it undergoes a pressure drop and starts to evaporate.
Evaporation: This is where the evaporator comes in. As the refrigerant absorbs heat from the environment, it evaporates (turns from liquid to gas) inside the evaporator coils.
Heat Rejection: Finally, the gas is sent back to the compressor to start the cycle again.
The evaporator is where the actual cooling takes place because it is the location where the refrigerant absorbs heat. It’s responsible for lowering the temperature of the air or water flowing over it.
At the core of an evaporator's function is the principle of heat exchange. The evaporator allows refrigerant to absorb heat from the space it is cooling and evaporate into a gas. Here is a step-by-step breakdown of how this process works:
Refrigerant Flow: The cycle begins when liquid refrigerant is forced through the expansion valve, which lowers its pressure and allows it to expand into a gas. This low-pressure refrigerant flows through the evaporator coils.
Heat Absorption: As warm air or liquid passes over the evaporator coils, the refrigerant inside the coils absorbs the heat. As it absorbs the heat, the refrigerant changes from a low-pressure liquid to a gas (evaporation).
Cooling the Environment: As the refrigerant evaporates and absorbs heat, it lowers the temperature of the surrounding air or water. The cooler air is then circulated back into the space to reduce the overall temperature.
Return to Compressor: Once the refrigerant has evaporated and absorbed the heat, it becomes a low-pressure gas and is sent back to the compressor to repeat the cycle.
The process is continuous, and the evaporator keeps drawing heat from the environment, thereby maintaining a cool, comfortable temperature in the area being refrigerated or air-conditioned.
The evaporator is a critical component in several systems, including refrigeration, air conditioning, and even industrial cooling systems. Here are some examples of where and how evaporators are used:
Air Conditioning: In air conditioning systems, the evaporator absorbs heat from the air inside the room and expels cooler air. This keeps the indoor environment at a comfortable temperature.
Refrigerators: In refrigerators, the evaporator is found inside the fridge and freezer compartments, absorbing heat from the food and maintaining a cool temperature inside.
Industrial Refrigeration: In industrial refrigeration, evaporators are used to cool large storage rooms or to maintain specific temperatures for equipment or products. They are typically found in cold storage facilities, warehouses, and manufacturing plants.
Heat Pumps: In heat pumps, the evaporator can also be used to absorb heat from outdoor air and transfer it indoors during cold weather, making the heat pump a year-round climate control system.
Evaporators are widely used in various fields that require cooling and temperature control, and different application scenarios have different requirements for the evaporator’s type, structure, and performance. Its application scope covers residential life, commercial services, industrial production, and medical and pharmaceutical fields, and the core adaptive characteristics are adjusted according to the actual needs of the scene. The main typical application scenarios and their matching evaporator characteristics are as follows:
Residential Air Conditioning and Household Refrigeration: The core needs are compact structure, low noise, and low energy consumption. Air-cooled dry expansion evaporators are the main choice here. They are small in size, easy to install, and can meet the daily small cooling load needs of families, such as the evaporator in the indoor unit of a split air conditioner and the evaporator coil inside the refrigerator freezer compartment.
Commercial Catering and Retail Cold Storage: It requires precise temperature control and stable cooling effect, such as supermarket cold storage, fresh-keeping display cabinets, and restaurant freezers. According to the size of the cooling load, air-cooled or small water-cooled dry expansion evaporators are usually selected, and part of the large commercial cold storage will use small flooded evaporators to ensure the stability of fresh-keeping temperature.
Industrial Large-Scale Refrigeration: Including industrial cold storage, food processing plants, chemical production cooling, etc., the core needs are large cooling capacity, high efficiency, and continuous and stable operation. Water-cooled flooded evaporators are the mainstream choice here—they have ultra-high heat exchange efficiency, can bear large cooling loads, and achieve precise control of industrial production temperature and humidity.
Medical and Pharmaceutical Field: For the storage of vaccines, biological reagents, and precision medical equipment, the evaporator is required to have extremely high temperature control accuracy (error within ±0.5℃) and good stability. Specialised sealed evaporators with anti-corrosion and anti-leakage structures are usually used, and they are matched with intelligent temperature control systems to avoid temperature fluctuations affecting the efficacy of medical products.
Heat Pump Systems: Heat pumps are dual-purpose equipment for cooling in summer and heating in winter. The evaporator in the heat pump system has a reversible working characteristic: in summer, it absorbs indoor heat and releases it to the outside (cooling); in winter, it absorbs heat from the outdoor air (even low-temperature air) and transfers it to the indoor (heating). This requires the evaporator to have good adaptability to different ambient temperatures and stable heat exchange performance under low-temperature conditions.
To evaluate the working effect and quality of an evaporator, there are several core performance indicators that are the key reference standards for selection, use, and maintenance. Understanding these indicators can help to better judge whether the evaporator is operating normally and whether it meets the actual cooling needs:
Heat Exchange Capacity: It refers to the amount of heat that the evaporator can absorb per unit time, the core indicator reflecting the cooling capacity, usually expressed in kW or kcal/h. The heat exchange capacity needs to match the actual refrigeration load of the system—too small will lead to insufficient cooling, and too large will cause energy waste.
Heat Transfer Coefficient: It is a measure of the evaporator’s heat exchange efficiency, reflecting the speed of heat transfer between the cooled medium and the refrigerant. The higher the heat transfer coefficient, the better the heat exchange effect of the evaporator under the same heat exchange area.
Temperature Difference at Evaporation: It refers to the temperature difference between the refrigerant’s evaporation temperature inside the evaporator and the temperature of the cooled medium outside the coil. A reasonable evaporation temperature difference can ensure efficient heat exchange, and an excessive difference will increase energy consumption, while an insufficient difference will lead to slow cooling.
Pressure Loss: It refers to the pressure drop of the refrigerant when it flows through the evaporator coil. Excessive pressure loss will increase the load of the compressor and reduce the overall efficiency of the system, so the evaporator’s internal flow path design needs to minimise pressure loss.
Defrosting Performance: For air-cooled evaporators used in low-temperature environments, frost will form on the surface of the coil after long-term operation, which will reduce the heat exchange efficiency. A good evaporator is equipped with an efficient defrosting system (electric defrosting, hot gas defrosting, etc.), and the defrosting process is fast and has little impact on the system’s temperature.
Evaporators are designed to provide efficient heat absorption, which is crucial for maintaining a low temperature inside a refrigeration system. By constantly absorbing heat from the environment, evaporators help ensure that your refrigerator, freezer, or air conditioning system operates efficiently.
Since evaporators play a significant role in maintaining low energy consumption in refrigeration systems, they contribute to overall energy savings. Systems with properly functioning evaporators don’t need to work as hard to cool the environment, which helps lower electricity bills.
Evaporators help maintain consistent temperatures, ensuring that products stored in refrigerators or freezers remain at safe temperatures. This is especially important for industries such as food storage, pharmaceuticals, and medical equipment, where precise temperature control is critical.
By improving the efficiency of a system and reducing wear and tear on other components, evaporators help extend the lifespan of refrigeration equipment. This leads to fewer repairs and replacements over time, reducing maintenance costs and improving the overall reliability of the system.
The evaporator is a critical component in refrigeration systems, air conditioning units, and industrial cooling systems. It works by absorbing heat from the environment and expelling it through a cooling process, keeping your space or products at the desired temperature. Whether you are using an air-cooled evaporator in a small refrigeration system or a flooded evaporator in a large industrial setting, this component plays a vital role in the efficiency and effectiveness of the system.
At Chengdu Topchill Environmental Control Technology Co., Ltd., we specialize in providing high-quality evaporators designed to meet the needs of a wide range of refrigeration applications. Our products are engineered for efficiency, durability, and reliable performance. If you’re looking to learn more about our evaporators or need assistance in selecting the right system for your application, don’t hesitate to contact us for more information.
Q: What is the main function of an evaporator?
A: The main function of an evaporator is to absorb heat from the surrounding air or water and convert liquid refrigerant into gas, thereby cooling the environment.
Q: How does an evaporator work in a refrigeration system?
A: An evaporator allows refrigerant to evaporate, absorbing heat as it moves through the coils. This process lowers the temperature in the area being cooled.
Q: What are the different types of evaporators?
A: The main types of evaporators include air-cooled evaporators, water-cooled evaporators, flooded evaporators, and dry expansion evaporators.
Q: Can evaporators be used in both small and large systems?
A: Yes, evaporators can be designed for both small and large refrigeration systems, depending on the specific needs and scale of the application.
