Understanding how a Water Cooled Chiller works often clears up a common confusion: many buyers know that a chiller removes heat, but they are unsure why a water-cooled system requires extra components like condenser water loops and cooling towers. The operating principle is not complicated, yet it involves more than just the internal refrigeration cycle. This article explains the full heat path—from the process load to the chiller and finally to the cooling tower—so you can clearly see how the system functions as a complete solution for large-scale industrial and commercial cooling.
At its core, a water-cooled system has one primary mission: remove unwanted heat from a process or building and discharge that heat efficiently to the outside environment.
On the chilled-water side, the system operates similarly to any other chiller. Warm water returning from production equipment, air handling units, or process loops enters the evaporator. Inside this heat exchanger, refrigerant absorbs the heat from the water. The water temperature drops and is pumped back to the application.
This chilled-water loop supports:
Industrial machinery
Manufacturing lines
Data center cooling systems
Commercial building air conditioning
Laboratory and pharmaceutical environments
Maintaining consistent chilled water temperature is critical for stable operation and product quality.
The key difference lies in how heat is discharged. Instead of releasing heat directly into ambient air, the system transfers heat into a second water circuit known as the condenser-water loop. This separation between chilled-water and condenser-water circuits is fundamental.
By distinguishing these two sides early, buyers gain clarity: one loop cools the load, and the other loop removes the heat from the refrigeration system itself.
Inside the Water Cooled Chiller, the refrigeration cycle follows the same thermodynamic principles used in other cooling systems.
The evaporator is where useful cooling occurs. Warm water enters the evaporator heat exchanger. Low-temperature refrigerant absorbs heat from the water and evaporates into vapor form. The chilled water then returns to the facility’s cooling network.
The compressor increases the pressure and temperature of the refrigerant vapor. This step is necessary to prepare the refrigerant for effective heat rejection in the condenser. In heavy-duty systems, a Water-cooled Chiller Semi-hermetic design often uses robust compressors engineered for long operating hours and consistent load conditions.
Unlike air-cooled systems that use airflow, the condenser in a water-cooled system transfers heat into circulating condenser water. The hot refrigerant vapor releases its heat into this water and condenses back into liquid form.
The expansion device lowers the refrigerant pressure. This drop in pressure reduces temperature, preparing the refrigerant to absorb heat again in the evaporator. The cycle then repeats continuously.
While this refrigeration process is standard, the method of heat rejection defines the system as water-cooled.
The condenser-water loop is what distinguishes this system from air-cooled alternatives.
After absorbing heat from the refrigerant in the condenser, the condenser water becomes warmer. It does not remain inside the chiller. Instead, it flows to a cooling tower where the heat is discharged to the atmosphere.
This additional loop increases system efficiency by using water’s superior heat transfer properties.
Inside the condenser, heat transfers through metal surfaces from the refrigerant into the condenser water. Because water has higher thermal conductivity than air, it can absorb and transport heat more effectively.
This allows the system to operate at lower condensing temperatures compared to many air-cooled designs under high load conditions.
Lower condensing temperatures reduce compressor workload. When the compressor operates under optimized pressure conditions, overall system efficiency improves. This is one reason water-cooled systems are widely used in high-capacity applications.
The cooling tower completes the heat rejection path.
When warm condenser water reaches the cooling tower, a portion of it evaporates. This evaporation process removes heat from the remaining water. As heat dissipates into the atmosphere, the water temperature drops.
The cooled condenser water then returns to the chiller condenser to absorb more heat from refrigerant. This continuous loop ensures stable heat rejection.
The entire process forms a closed chain:
The evaporator absorbs heat from the facility
The compressor raises refrigerant temperature
The condenser transfers heat into condenser water
The cooling tower rejects that heat outdoors
The refrigerant expands and restarts the cycle
This coordinated system ensures steady operation under high demand.
Warm process water enters the evaporator. Refrigerant absorbs heat and evaporates. The chilled water returns to cool equipment or spaces.
The refrigerant vapor is compressed, increasing its pressure and temperature.
The hot refrigerant flows into the condenser. Heat moves from refrigerant into condenser water.
The warmed condenser water travels to the cooling tower, where heat dissipates into the atmosphere through evaporative cooling.
The liquid refrigerant passes through the expansion device, reducing pressure and temperature before returning to the evaporator.
This structured sequence clarifies how heat flows through the entire system.
Water-cooled systems are commonly used in facilities where cooling demand is continuous and substantial.
Large manufacturing plants, power facilities, and data centers operate around the clock. Water-cooled systems are designed to handle sustained load conditions.
Because condenser water temperatures can be controlled through cooling tower management, system stability improves under fluctuating environmental conditions.
High-capacity cooling needs require efficiency and durability. The ability to handle greater heat loads makes water-cooled systems attractive for central plant installations.
Semi-hermetic compressors are designed for demanding environments. Their construction supports steady performance in long-running industrial operations.

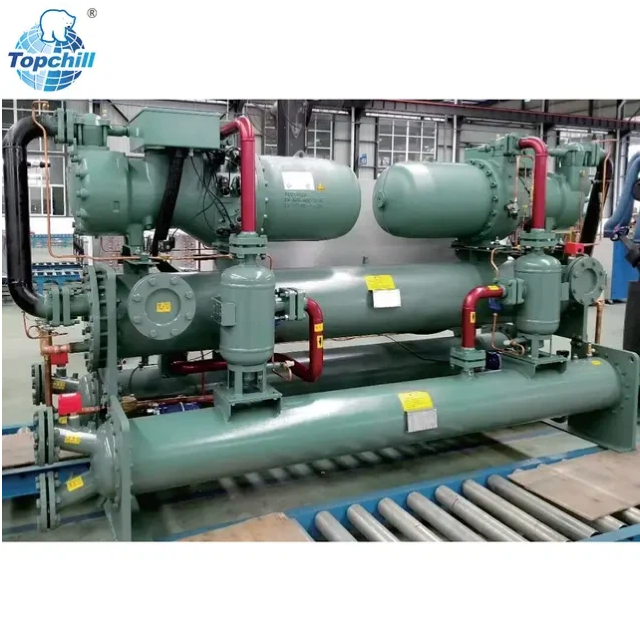

A Water-cooled Chiller Semi-hermetic configuration allows internal service access, extending equipment lifespan and reducing total ownership cost.
Industrial facilities value serviceability. Accessible compressor design simplifies inspections and repairs, minimizing downtime.
TOPCHILL AIR COOLER manufactures water-cooled systems built with durability and quality in mind, ensuring consistent performance in heavy-duty applications.
System Part | Its Job | Where the Heat Goes Next |
Evaporator | Absorbs heat from chilled water | Into the refrigerant |
Compressor | Raises refrigerant pressure and temperature | Toward the condenser |
Condenser | Transfers heat into condenser water | To the cooling tower loop |
Cooling Tower | Rejects heat from condenser water | Out to the atmosphere |
Expansion Device | Drops refrigerant pressure | Back to the evaporator |
This simplified map highlights the full heat path and clarifies the relationship between each component.
A Water Cooled Chiller operates by combining a traditional refrigeration cycle with a dedicated condenser-water loop and cooling tower system. Heat is removed from the process, transferred into refrigerant, moved into condenser water, and finally rejected to the atmosphere through evaporative cooling. Understanding this complete system path helps buyers evaluate installation requirements, efficiency expectations, and long-term operating performance. For large-scale applications that require stable and continuous cooling, a properly engineered water-cooled cooling system offers dependable and efficient performance. To discuss how TOPCHILL AIR COOLER can support your project requirements, contact us for technical consultation and detailed product information.
The cooling tower removes heat from the condenser water, allowing the system to continuously discharge heat and maintain efficient operation.
A water-cooled model uses a condenser water loop and cooling tower for heat rejection, while air-cooled systems release heat directly into ambient air.
Water’s higher heat transfer capacity often supports better efficiency under heavy and continuous cooling loads.
They are commonly used in industrial plants, data centers, commercial central cooling systems, and facilities with large heat loads.
