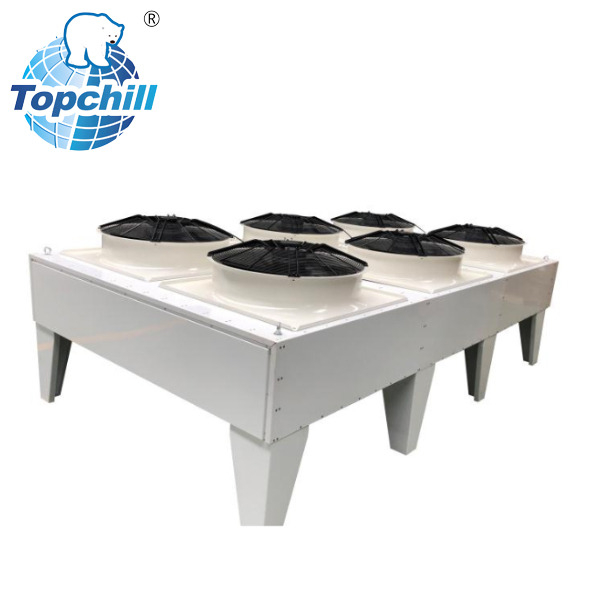

Topchill Air-cooled Condenser TP Heat Exchanger

Heavy-Duty Air-cooled Condenser TP Heat Exchanger

Topchill air-cooled condenser is an air cooling and heat exchange device used in Freon refrigeration system. Topchill has launched five series of air-cooled condensers, FNH, FNV, FNU, FNVB, and TP, to meet the needs of different customers. According to the size of different systems, the products are divided into top discharge and side discharge forms. They are of good quality and low price. Welcome customers to inquiry


Availability:



Inquire Add to Basket

Air-cooled condensor Heat Exchanger TOPCHILL Refrigeartion COLD STORAGE

Product Advantage

Technical Parameters

Product Uses

FAQ

Designed exclusively for Freon refrigeration systems, the Topchill Air-cooled Condenser TP Heat Exchanger is a high-performance air-cooling solution tailored to diverse industrial and commercial needs. It comprises five product series—FNH, FNV, FNU, FNVB, and TP—and offers two discharge designs (top discharge and side discharge) to match different system sizes. Combining durability, energy efficiency, and smart functionality, this condenser is ideal for cold storage, food processing, and logistics cold chain applications, delivering consistent cooling while minimizing operational costs.

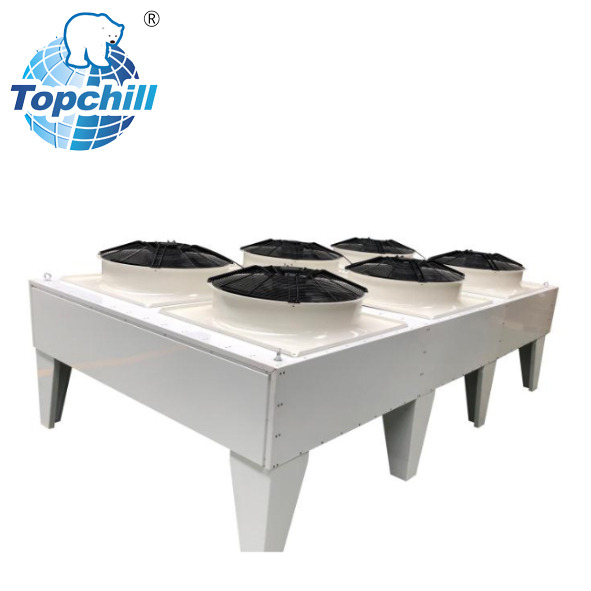

Air-cooled condensor

AI-Optimized Energy Efficiency: Equipped with an AI-driven heat exchange design, the unit reduces energy consumption by 30% compared to traditional models. It is fully certified by the ISO 50001 Energy Management System, ensuring compliance with global energy standards.

Military-Grade Durability: The condenser features aerospace-grade aluminum fins coated with a nano-protective layer, which withstands 500+ hours of salt spray testing (per ASTM B117) and operates stably in extreme temperatures ranging from -40°C to 80°C.

Smart IoT Integration: Users can monitor real-time performance (e.g., temperature, fan speed, and heat exchange efficiency) via a dedicated mobile app. The system predicts maintenance needs with 95% accuracy, reducing unexpected downtime.

Ultra-Low Maintenance Cost: Constructed with corrosion-resistant 316L stainless steel tubes, the condenser boasts a service life of 10+ years. This design cuts annual maintenance costs by 45% by minimizing tube replacement and cleaning frequency.

Adaptive Multi-Scene Operation: Patented variable-speed fans automatically adjust to ambient humidity (20–95% RH) and cooling load changes, ensuring optimal performance in high-humidity coastal areas or low-temperature industrial workshops.

Whisper-Quiet Performance: With noise levels as low as 55 dB(A)—equivalent to a quiet office—it is perfectly suited for urban commercial buildings (e.g., shopping malls) and noise-sensitive environments like hospitals.

Global Compliance & Support: It meets CE, UL, and ASHRAE standards, supporting worldwide deployment. Backed by a 10-year warranty and 24/7 technical support across 30+ countries, it ensures long-term reliability.

The Topchill TP Air-cooled Condenser covers a wide range of cooling capacities to fit small-to-large refrigeration systems. It offers single-fan, double-fan, triple-fan, fourfold-fan, and sextule-fan configurations. For single-fan models (e.g., 08B/116), the condensing heat ranges from 48 kW to 66 kW, with an air flow of 12,200–18,660 m³/h and fan rotating speed of 490–1,800 rpm. Double-fan models (e.g., 08B/125) deliver 79–109 kW of condensing heat, 24,920–39,000 m³/h of air flow, and a total current of 3.9–7.6 A. Sextule-fan models (e.g., 08B/266) provide the highest capacity, with 288–396 kW of condensing heat and 29,540–115,070 m³/h of air flow. All models support two motor wiring types (Triangle and Y type) and feature connecting tubes with sizes ranging from 35 mm to 67 mm (in/out), ensuring compatibility with various refrigeration system pipelines.

Model Specifications		Wiring of motor	Condenser heat	Air flow	Rotating speed of fan	Current	Total curren		Connecting tube
	GP		∆t=15k(kw)	m³/h		W	A	Ln/out(mm)	DB(A)
	GP		∆t=15k(kw)	m³/h		W	A	Ln/out(mm)	DB(A)
Single fan	08B/116	Triangle	66	18660	890	1800	3.8	52	42/35
	08B/116	Y type	60	14140	660	1150	2.2	46	42/35
	08C/116	Triangle	58	14770	670	800	1.95	45	42/35
	08C/116	Y type	48	12200	670	490	1	41	42/35
Double fan	08B/125	Triangle	109	39000	890	3600	7.6	54	42/35
	08B/125	Y type	99	29680	660	3600	7.6	48	42/35
	008C/125	Triangle	96	30120	670	1600	3.9	47	42/35
	008C/125	Y type	79	24920	670	1600	3.9	43	42/35
	08B/126	Triangle	132	37320	890	2300	4.4	54	54/42
	08B/126	Y type	120	28280	660	2300	4.4	48	54/42
	08C/126	Triangle	116	24400	670	980	2	47	54/42
	08C/126	Y type	96	45180	670	980	2	43	54/42
Triple fan	08B/135	Triangle	165	58500	890	5400	11.4	56	54/42
	08B/135	Ytype	150	44520	660	5400	11.4	50	54/42
	08C/135	Triangle	145	37380	670	2400	5.85	49	54/42
	08C/135	Y type	120	44310	670	2400	5.85	45	54/42
	08B/136	Triangle	198	55980	890	3450	6.6	56	54/42
	08B/136	Y type	180	42420	660	3450	6.6	50	54/42
	08C/136	Triangle	174	36600	510	2400	3	49	54/42
	08C/136	Y type	144	56080	510	1470	3	45	54/42
Fourfold fan	08B/146	Triangle	264	74640	890	7200	15.2	57	67/54
	08B/146	Y type	240	56560	660	4600	8.8	51	67/54
	08C/146	Triangle	232	48800	510	1470	7.8	50	67/54
	08C/146	Y type	192	88740	510	3200	4	46	67/54
Sextule fan	08B/265	Triangle	330	115070	890	10800	22.8	59	2×67/54
	08B/265	Y type	300	87100	660	10800	13.2	53	2×67/54
	08C/265	Triangle	290	70750	510	1960	11.7	52	2×67/54
	08C/265	Y type	240	8600	510	4800	11.7	48	2×67/54
	08B/266	Triangle	396	109620	890	6900	22.8	59	2×67/54
	08B/266	Y type	360	79020	660	6900	13.2	53	2×67/54
	08C/266	Triangle	348	67330	510	4800	6	52	2×67/54
	08C/266	Y type	288	29540	510	2940	6	48	2×67/54

Large-Scale Cold Storage & Freezer Warehouses: Ideal for meat, seafood processing centers, and logistics cold stores in high-temperature, high-humidity regions. It reduces defrosting downtime by 30%, maintains a stable temperature (±0.5°C), and improves overall energy efficiency.

Food Processing Workshops: Widely used in meat cutting, seafood processing, and dairy production facilities. Its anti-corrosion and anti-clogging design resists frequent water washing and meets strict food-grade sanitary standards (e.g., FDA compliance).

High-Traffic Logistics & Cold Chain Centers: In environments with frequent door openings (e.g., distribution hubs), the condenser’s automatic defrosting function prevents excessive frost buildup, ensuring 99.9% system reliability.

Chemical & Industrial Low-Temperature Applications: Suitable for cooling chemical reactors and low-temperature industrial processes. The 316L stainless steel tubes and waterproof casing resist chemical corrosion, making it durable in complex industrial settings.

Cold Storage in High-Humidity Climates: Specifically optimized for southern and coastal areas with high humidity (80–95% RH). It effectively addresses rapid frost formation on fins, ensuring long-term stable cooling performance.

Q: What is the minimum order quantity (MOQ)?

A: The MOQ is 1 piece, suitable for both small-scale replacements and large-scale project purchases.

Q: What is the lead time for production?

A: 2–4 weeks, depending on the configuration (sextule-fan models may require an extra 3 days for assembly).

Q: What are the payment terms?

A: For orders over 10,000 USD: 30% deposit in advance, 70% before goods loading. For orders under 10,000 USD: 100% payment in advance.
