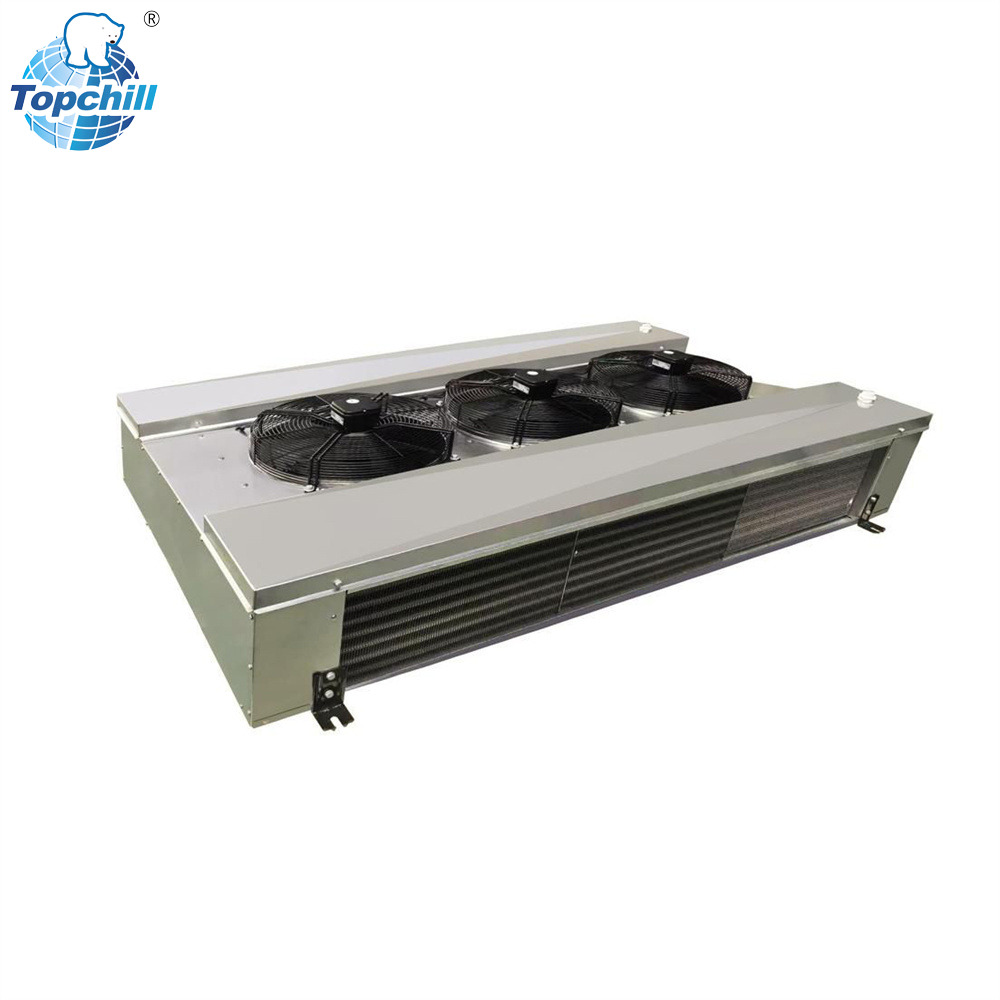

The physical placement of an Evaporator dictates the entire system's thermodynamic efficiency. Rated capacity means nothing if the unit sits in a dead zone. Improper installation locations in industrial settings lead to short-cycling, coil freezing, uneven temperature gradients, and accelerated mechanical wear. Facility managers and installation technicians often underestimate how spatial constraints and localized heat loads disrupt designed airflow patterns. If you mount a unit without mapping the room's thermal dynamics, you risk destroying the compressor through constant short-cycling and liquid floodback. This guide provides a technical framework for determining optimal placement based on airflow dynamics, structural limitations, and specific application requirements. You will learn how to position units correctly for general workshop cooling, strict temperature control, and high-humidity environments. We focus on practical field execution, bypassing theoretical models to give you actionable installation parameters.
Avoid Doorways: Never install the unit directly over or adjacent to high-traffic doors to prevent ambient moisture infiltration and subsequent coil icing.
Prioritize Air Throw: A side discharge evaporator must be positioned to utilize its maximum air throw distance without immediate obstruction from machinery or structural beams.
Ensure Maintenance Access: Placement must account for safe, OSHA-compliant access for routine coil cleaning, motor replacement, and drainage inspection.
Match Application to Location: Placement strategies must shift depending on the environment, particularly when dealing with a food processing air cooler versus a standard workshop air cooler.
The fundamental purpose of the evaporator coil is heat exchange. It absorbs sensible and latent heat from the surrounding space, transferring it to the circulating refrigerant. Placement directly impacts this core function. If the unit is installed in a restricted corner, it cannot draw in sufficient return air. This starves the coil, drops the suction pressure, and severely limits heat transfer capacity. When suction pressure drops too low, the thermostatic expansion valve hunts, and liquid refrigerant can flood back to the compressor, causing catastrophic mechanical failure. Uniform temperature distribution across the workshop floor requires strategic positioning. The unit must project conditioned air across the maximum possible floor area before the air velocity drops below terminal levels.
Placement also dictates the unit's ability to maintain the designed Delta-T. Delta-T represents the temperature differential between the return air entering the coil and the supply air exiting it. A properly located unit pulls in the warmest air in the space and discharges it without immediate restriction. If supply air bounces off a nearby wall and feeds directly back into the return, the unit reads a false temperature drop. The thermostat satisfies prematurely, leaving the rest of the workshop hot. Maintaining a consistent Delta-T requires an unobstructed airflow path.
To verify baseline performance potential before mounting, execute these steps:
Measure the total distance from the proposed discharge face to the nearest solid obstruction.
Calculate the total square footage of the primary cooling zone to ensure the throw covers the footprint.
Identify all secondary heat sources within a 20-foot radius of the proposed intake.
Verify the structural load capacity of the mounting wall or ceiling joists to handle the operating weight.
Correct placement reduces compressor run times. When an evaporator operates in an optimal location, it achieves the setpoint temperature faster. Shorter run times directly lower energy consumption and reduce mechanical wear on the compressor. Conversely, poor placement forces the system to run continuously to overcome localized hot spots. This constant operation degrades contactors, stresses fan motors, and accelerates the breakdown of compressor oil due to sustained high operating temperatures.
Location decisions serve as a primary factor in minimizing long-term maintenance overhead. Units installed in highly contaminated areas, such as directly above welding stations or grinding wheels, ingest heavy particulate matter. This fouls the coil fins, insulates the copper tubing, and destroys heat transfer efficiency. Frequent chemical cleanings become necessary, driving up labor costs and downtime. Positioning the unit outside of direct contamination zones preserves coil integrity and extends the equipment lifecycle.
Placement Scenario | Suction Pressure Impact | Compressor Wear | Defrost Frequency |
|---|---|---|---|
Optimal (Unobstructed Throw, Away from Doors) | Stable, matches design parameters | Normal cycling, extended lifespan | Standard timer-based or demand cycles |
Restricted Return Air (Too close to wall) | Drops below design, risk of freezing | High risk of liquid floodback | Frequent, prolonged defrosts required |
Directly Over Loading Dock | Spikes due to massive latent load | Continuous running, high head pressure | Constant icing, overwhelmed heaters |
Discharge Facing Solid Beam | Erratic due to short-cycling | Rapid on/off cycling, burnt contactors | Irregular, often fails to clear ice |
Warm, moist air enters the workshop every time a loading dock door opens. This ambient air carries a massive latent heat load. If a unit sits too close to the entryway, the fan pulls this unconditioned air directly across the freezing coil fins. The moisture condenses instantly and freezes. Ice accumulation blocks airflow, insulates the coil, and forces the system into prolonged, inefficient defrost cycles. Heavy icing can physically crush the aluminum fins or rupture the copper tubing, leading to total system failure and expensive refrigerant leaks.
Industry standards dictate a strict spacing rule for entryways. Position the unit away from the door at a distance at least equal to the height of the coil. Ideally, the unit should blow air toward the door rather than pulling air from it. Pushing conditioned air toward the opening creates a slight thermal barrier, whereas pulling air acts like a vacuum for ambient humidity. If spatial constraints force installation near a door, you must integrate heavy-duty strip curtains or high-velocity air curtains to mitigate the moisture influx.
A side discharge evaporator requires strict adherence to minimum clearance zones. The rear of the unit must remain unobstructed to allow unrestricted return air intake. Starving the return air side increases static pressure, reduces CFM, and causes the coil to freeze solid. A general rule requires a rear clearance of at least 1.5 to 2 times the diameter of the fan blades. For example, a unit with 24-inch fans needs a minimum of 36 to 48 inches of rear clearance. Never mount the unit flush against a wall unless it is specifically engineered as a front-intake model.
You must calculate the necessary unobstructed path for the supply air based on the fan's CFM and throw specifications. Throw distance indicates how far the air travels before its velocity drops to a terminal minimum, typically 50 feet per minute. Obstructions within this throw zone disrupt the airflow pattern. Structural beams, overhead cranes, or tall machinery cause the air to deflect, creating dead zones and short-cycling loops. Review the manufacturer's throw charts and map the airflow trajectory against the workshop's structural blueprints before finalizing the mounting location.
Building pressure heavily influences localized airflow dynamics. Installing the coil on the positive or negative side of the airflow system requires careful analysis. If the workshop operates under negative pressure due to heavy exhaust fans, ambient air constantly infiltrates the building envelope through every crack and crevice. Units located near these infiltration points will struggle with excessive latent loads and constant condensation. Conversely, positive pressure environments help push conditioned air outward, but can also force cold air out of the building if doors remain open.
Workshop exhaust fans and makeup air units dictate the localized pressure around the cooling equipment. If a high-volume exhaust fan sits directly opposite the supply discharge, it will pull the conditioned air straight out of the building before it cools the space. You must map the existing mechanical ventilation patterns. Position the cooling units to work in tandem with makeup air systems, ensuring the conditioned air circulates through the occupied zones before reaching the exhaust intakes.
General manufacturing environments present complex thermal challenges. Heavy machinery, such as CNC machines, injection molders, and welding stations, generate intense localized heat loads. A standard workshop air cooler must be positioned to mitigate these specific zones without disrupting overall floor temperatures. Do not point the discharge directly at heat-generating equipment. CNC machines produce oil mist; if the cooler draws this mist into the return, the oil coats the fins, traps airborne dust, and completely insulates the coil, destroying heat transfer.
Strategic positioning provides spot cooling for personnel without creating disruptive drafts. High-velocity air blowing directly onto workers causes discomfort and reduces productivity. Mount the units high enough to allow the cold air to mix with ambient air before descending into the occupied zone. Use adjustable louvers to direct airflow parallel to workstations rather than perpendicular to them. This creates a comfortable ambient environment while effectively neutralizing the sensible heat rising from the machinery.
Food production facilities operate under strict regulatory requirements from agencies like the FDA and USDA. Cleanability and cross-contamination prevention dictate placement. A food processing air cooler must be installed in locations that allow full access for high-pressure chemical washdowns. The unit cannot be tucked into tight ceiling corners where sanitation crews cannot reach the rear casing or the drain pan. NEMA 4X enclosures, epoxy-coated fins, and sloped stainless steel drain pans are mandatory, but their effectiveness relies entirely on accessible placement.
Placement must strictly avoid areas directly above exposed product lines. Condensation forms on the exterior casing or uninsulated piping during heavy load periods. If a unit sits over a conveyor belt, condensate drip poses a severe biological contamination risk. In workshop cold rooms, position the unit to maintain uniform temperatures without freezing the product near the discharge. Ensure the throw reaches the back wall of the cold room, creating a circular airflow pattern that envelops the stored goods without blasting them directly.
Environments requiring rapid temperature pull-down demand aggressive placement tactics. Foundries, glass plants, or heavy stamping facilities experience sudden, massive spikes in sensible heat. A single unit cannot handle these shock loads. You must integrate multiple units to create a synchronized airflow pattern. A fast cooling air cooler setup often utilizes a circular or cross-flow configuration to sweep the heat out of the critical zone rapidly.
Stagger the placement of multiple units to prevent opposing airflows. If two units face each other directly, their air streams collide, killing the velocity and creating a stagnant high-pressure zone in the center of the room. Instead, arrange them in a racetrack pattern, where the discharge of one unit feeds into the intake path of the next. This multiplies the air turnover rate, maximizes convective heat transfer, and drastically reduces the pull-down time during peak heat events.
Structural requirements dictate the choice between wall-mounting and ceiling suspension. Wall-mounted units require heavy-duty structural brackets tied directly into load-bearing columns or reinforced masonry. Standard drywall or light-gauge steel studs cannot support the dynamic weight of a vibrating unit filled with refrigerant and water. Ceiling suspension relies on threaded rods anchored to roof trusses or heavy unistrut spans. Both methods require vibration isolation, such as neoprene pads or spring isolators, to prevent harmonic resonance from transferring into the building structure and causing metal fatigue.
Height impacts air distribution significantly. Mounting the unit too high near the roof deck risks severe air stratification. The cold supply air may lack the velocity to push through the rising hot air, leaving the floor level unconditioned and wasting energy cooling the ceiling. Conversely, mounting the unit too low generates draft complaints from personnel and exposes the equipment to forklift damage. The optimal height usually falls between 10 and 15 feet above the finished floor, depending on the fan's throw capacity and the overall ceiling height.
Mechanical constraints often dictate flow orientation preference. Left-hand or right-hand flow refers to the location of the refrigerant piping connections and the electrical access panel when facing the air discharge. In new construction, you specify the orientation to match the easiest piping route. In retrofit scenarios, existing infrastructure forces the decision. Swapping a traditional slab coil for a side discharge unit requires matching the orientation to the existing copper linesets to avoid costly and complex pipe rerouting.
Orientation affects the internal distribution of refrigerant. The distributor tubes and the thermostatic expansion valve (TXV) must sit in the correct physical orientation to ensure equal liquid feed to all coil circuits. Forcing a left-hand unit into a right-hand piping setup often results in awkward pipe bends, trapped oil, and restricted flow. Gravity fights the liquid refrigerant if the distributor nozzle is oriented incorrectly, starving the top circuits and freezing the bottom ones. Always verify the orientation requirements with the manufacturer before ordering.
Optimal airflow placement often conflicts with the practical limitations of running copper linesets and condensate drains. You might find the perfect aerodynamic location in the center of the workshop, but routing the suction line back to the compressor might require exceeding the maximum allowable equivalent pipe length. Long pipe runs cause unacceptable pressure drops, reducing system capacity and preventing proper oil return to the compressor, which leads to seized bearings.
Ensure correct pipe orientation during installation. Position larger diameter suction lines and smaller liquid lines correctly based on manufacturer specifications. Install proper P-traps on the suction line if the unit sits below the condenser to guarantee oil return up the vertical riser. Condensate drainage requires strict attention. You must maintain a proper pitch of at least 1/4 inch per foot for gravity drainage. If the optimal placement prevents gravity drainage, you must install a heavy-duty condensate pump, which introduces an additional mechanical failure point that requires regular testing.
Short-cycling destroys efficiency and equipment lifespan. It occurs when supply air bounces off nearby walls, heavy machinery, or stacked inventory and feeds directly back into the return intake. The thermostat registers the cold air and shuts off the compressor, only to turn it back on minutes later as the ambient heat rapidly infiltrates the localized cold zone. This rapid cycling prevents the system from removing latent heat, leaving the workshop cold but uncomfortably humid, and burns out compressor contactors.
Mitigation requires strict adherence to clearance zones. If structural obstacles are unavoidable, utilize directional air deflectors to steer the supply air away from the obstruction. Adjusting fan speeds can also help. Lowering the fan speed reduces the throw distance, preventing the air from hitting the opposing wall and bouncing back. However, reducing fan speed also lowers the total CFM, so you must recalculate the sensible heat ratio to ensure the unit still meets the cooling load of the space.
Neglected maintenance destroys cooling capacity. Units installed in inaccessible locations rarely receive proper service. If a unit sits above active crane rails, high-voltage equipment, or fragile production lines, maintenance teams will skip the routine coil cleanings and filter changes. The coil will plug with dirt, the drain pan will overflow, and the motors will burn out from excessive heat caused by restricted airflow.

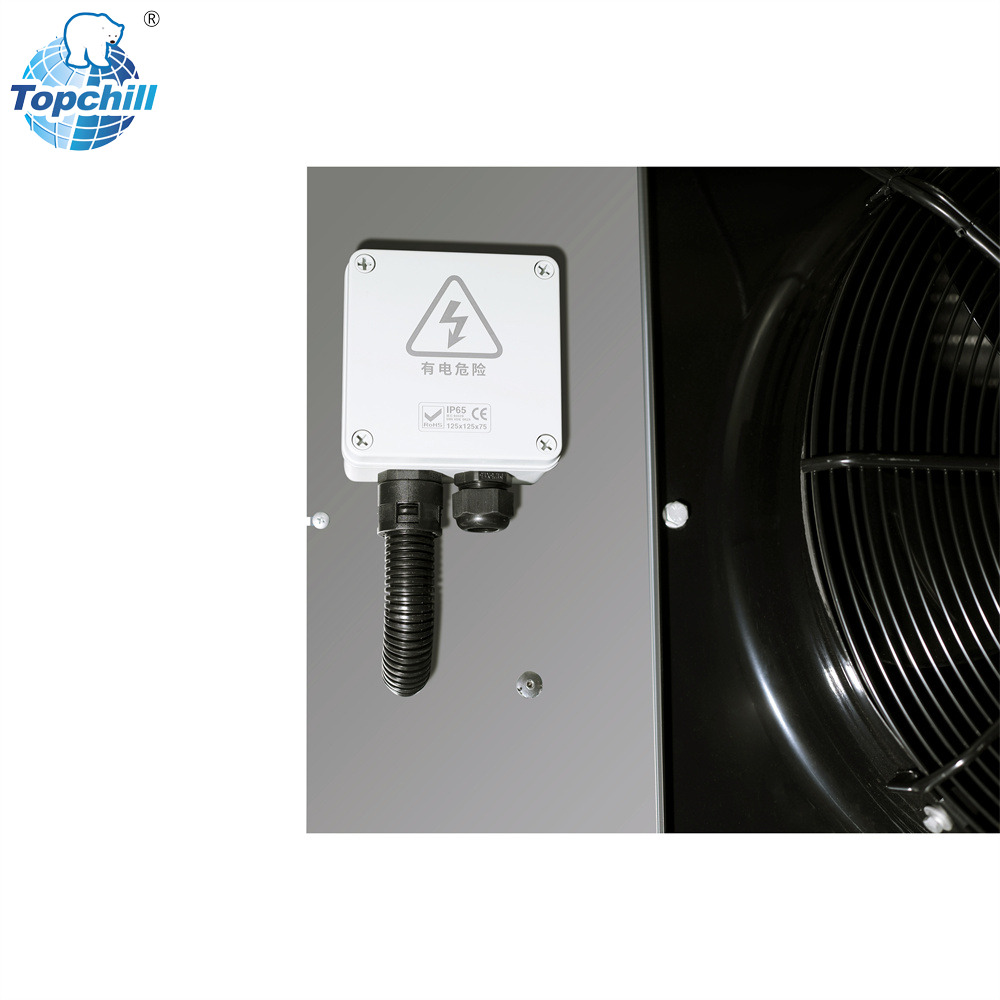

Specify required service clearances during the design phase. Technicians need a minimum of 36 inches of clearance on the access panel side to safely remove panels, adjust TXVs, and troubleshoot electrical components. They need enough room to pull and replace fan motors without removing the entire unit from its mounts. Ensure the location allows for safe deployment of scissor lifts or scaffolding. If the unit requires a permanent catwalk for access, factor that dead weight into the structural load calculations.
High-humidity workshops present severe condensation risks. Secondary condensation forms on the exterior casing of the unit or on adjacent uninsulated ductwork. This moisture drips onto the floor, creating slip hazards, or onto machinery, causing rust and electrical shorts. The risk increases significantly if the unit operates with a very low suction temperature to maximize latent heat removal.
Proper insulation is mandatory. Apply closed-cell elastomeric foam insulation with a minimum wall thickness of 3/4 inch to all suction lines. Seal every longitudinal seam and butt joint with specialized contact adhesive to prevent vapor transmission. Install secondary drain pans beneath the entire unit, especially if positioned over sensitive equipment. Equip the secondary pan with a float switch wired to shut down the cooling cycle if water accumulates, preventing catastrophic overflows.
Placement Error | Operational Consequence | Mitigation Strategy |
|---|---|---|
Mounted directly over loading dock doors | Rapid coil icing, excessive defrost cycles, high latent load | Relocate unit away from door by at least the coil height; install air curtains. |
Insufficient rear wall clearance | Starved return air, high static pressure, frozen coil | Maintain rear clearance of 1.5x to 2x the fan blade diameter. |
Discharge facing a structural beam | Severe short-cycling, localized dead zones, false thermostat readings | Install directional louvers or relocate unit to ensure unobstructed throw path. |
Installed above sensitive machinery | Condensate drip damage, impossible maintenance access | Relocate to an aisleway; install secondary drain pans with float switches. |
Opposing units facing each other | Airflow collision, stagnant high-pressure zones, poor heat removal | Stagger units to create a circular or racetrack airflow pattern. |
Conduct a localized heat load calculation to identify specific high-heat zones before selecting the mounting location.
Map out existing exhaust fans and makeup air units to ensure the cooling airflow works in tandem with building pressure dynamics.
Verify the structural integrity of proposed mounting points, ensuring they can handle the dynamic, vibrating weight of the equipment.
Confirm maintenance clearances with facility safety teams to guarantee OSHA-compliant access for future service.
A: Installing a unit over a door exposes it to a rapid influx of ambient humidity every time the door opens. This causes immediate coil icing, overwhelms the condensate drainage system, and forces inefficient defrost cycles. Always space the unit away from the door by at least the height of the coil.
A: A side discharge unit requires a minimum rear intake clearance of 1.5 to 2 times the fan blade diameter to prevent starving the return air. You must also check the manufacturer's specifications for supply throw to ensure the front discharge path remains completely unobstructed.
A: Yes. Orientation impacts piping connections, service access, and internal refrigerant distribution. You must align the unit's orientation with the specific mechanical design and existing infrastructure to avoid complex pipe routing, trapped oil, and restricted refrigerant flow.
A: Place it away from direct product lines to prevent biological contamination from condensate drip. Ensure the location provides easy washdown access for sanitation crews and complies with strict drainage codes, especially when integrating into cold room applications.
A: Prevent short-cycling by avoiding structural obstructions like beams or tall machinery within the unit's throw distance. Obstructions force cold supply air immediately back into the return intake, causing the thermostat to shut down the system prematurely.
A: Yes, but you must account for building pressure implications on fan performance. Positive pressure helps push conditioned air outward, but if placed near an open entryway, it can force cold air out of the building. Balancing the workshop's overall HVAC system is required.
